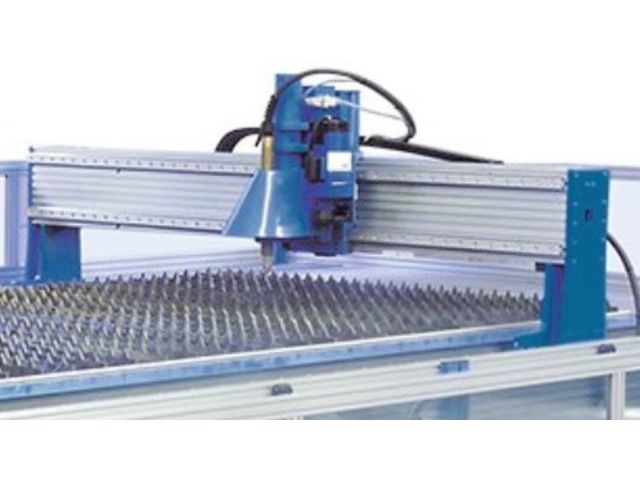

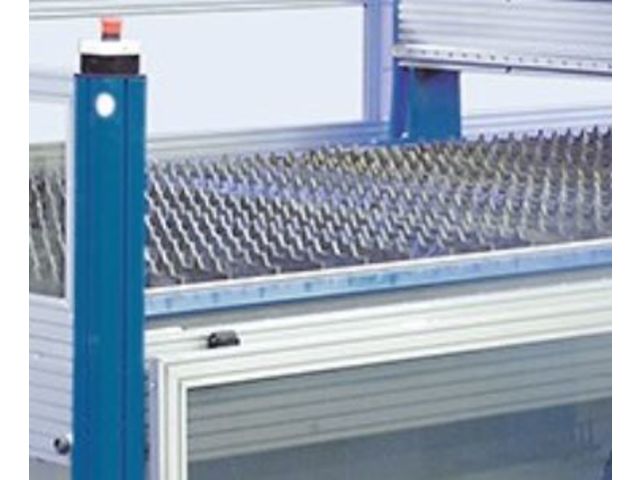

Plasma Cutting System - TFGM Plasma 3015 PM1250 KNUTH

Plasma Cutting System - TFGM Plasma 3015 PM1250

Vote

“ Low-cost compact Plasma Cutter System, including cutting table, premium plasma source, catch tray, and ready for connection of a smoke exhaust ”

Ask for a quote

Presentation

high-resolution step motors with planetary gears for exact positioning and high repeatability
robust gear drive for travel speeds up to 250 mm/s
cost-effective air plasma cutter for structural steel, stainless steel, aluminum, etc.
linear guides on all axes
X axis with drives on both sides
Opticut-CNC Software Package
includes Hypertherm Powermax 1250 - quick and low-cost with advanced technology
ready for connection to an exhaust system (not included)
bridge height: 140 mm

A smoke exhaust must be used during operation of the cutting system!

Powermax 1250 plasma source, machine torch, ground wire, basic set of nozzles, work table with vacuum connection, partially enclosed workspace, Cam-System Opticut CNC 4,4m, cable f. connection at customer PC, (System Requirements: Windows 98 / XP, USB port), operator manual

Technical features

Bridge height : 140 mm Production cutting capacity (plunge-cuts) St 37 : 10 mm Air consumption : 300 l/min Pressure (min.) : 8 bar Z axis / basin exhaust connections : 150/150 Ø/mm Plasma source power : 20 kW Line voltage : 200 - 600 V Feed : 9.000 mm/min Rapid feed : 12.000 mm/min Connected load (machine without plasma source) : 4 kW
