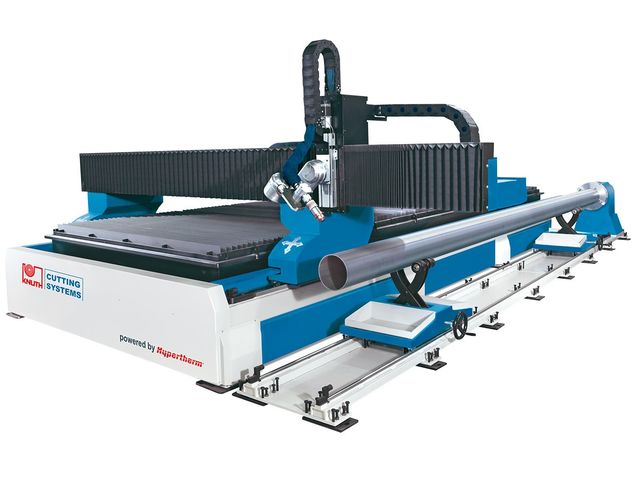

Plasma Cutting Systems : Plasma-Jet DSL

Plasma cutter

Vote

“ World-Class Plasma Cutter Systems based on the know-how and technology of the market leader Hypertherm®. ”

Ask for a quote

Presentation

• PREMIUM cutting systems come in a wide variety of equipment packages featuring up to 6-axis cutters.
• selection of the optimum Hypertherm® plasma source.
• Hypertherm MicroEDGE® Pro CNC control & software package.
• Extremely rigid design for maximum cutting precision.
• Dual-drive bridge.
• High-quality linear guides on all axes.
• Dynamic AC servo drives on all axes with maintenance-free, zero-backlash planetary gears.
• Low-wear and low-maintenance helical gears are designed for continuous operation.
• Optimum track speed even for fine contours and tight radii.
• Automatic torch height control.
• Stand-alone cutter table features rigid steel construction for high load capacity.
• Adjustable cutting current.
• Stand-alone table eliminates thermal and mechanical influences on the plasma cutter system.
• Quick-coupling for cutter head changes in seconds.
• Minimized tooling time ensure maximum cost savings.
• Use the existing cutting parameters stored in the control to find the optimum cut.
• Available with 5-axis cutter head, tube cutter, and many more options.

Standard equipment : Hypertherm® MicroEDGE® Pro CNCg, Hypertherm® plasma source, Hypertherm® cutter head, Hypertherm® Nestmaster® nesting software, Z axis with servo-THC, magnetic torch coupler, work table with vacuum connector and automatic shutter control, operator manual, programming instructions.

Technical features

Rapid feed : 30000 mm/min. Table height : 800 mm Table load capacity : 1000 kg/m2 Cutting Length : 3050 - 25150 mm Cutting Width : 1600 - 4150 mm Distance between cutter head and table : 170 mm Hole cutting capacity in production : 20 - 45 mm Cut-off (edge-start) : 25 - 80 mm Virtually burr-free : 16 - 38 mm Hole cutting capacity in production : 22 - 50 mm
