Pneumatic servovalves

Pneumatic blocker cylinder

Vote

“ *Only Type 61 and 71 instantaneous pilot valves with a 5 mm or 7.5 mm passage diameter are made with a nylon outer body. ”

Ask for a quote

Presentation

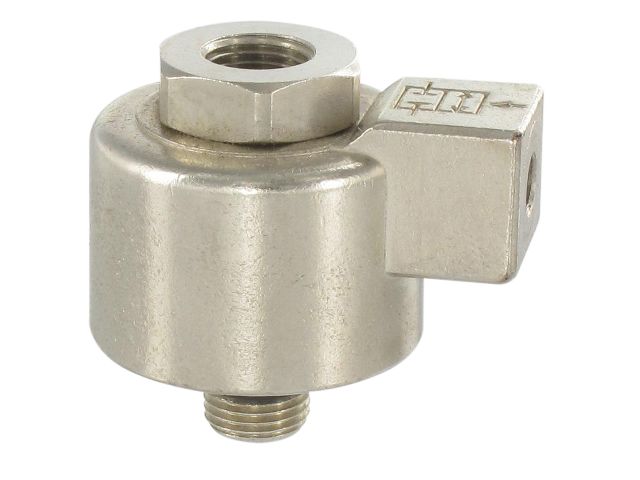

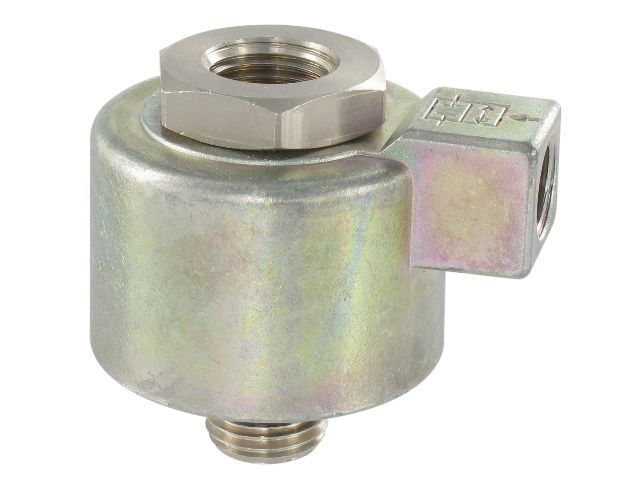

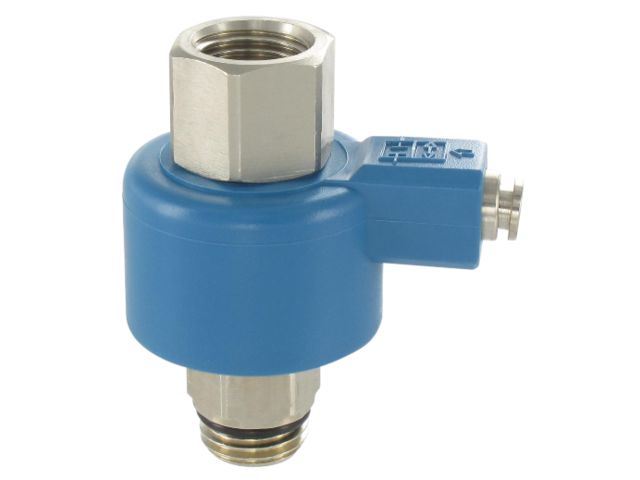

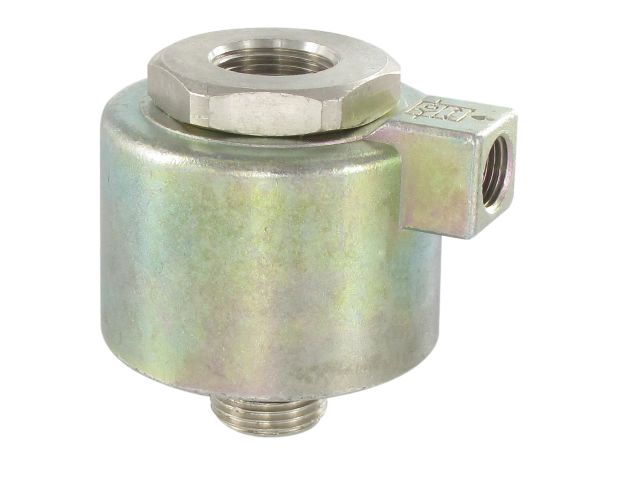

The pneumatic cylinder clamps offered by SENGA have a nickel-plated metal (or nylon) body, a BSP + OR cylindrical threaded base and NBR oil-resistant rubber seals. They are characterised by their free 360° rotation.

Equipped with one-way or two-way in-line operation, the cylinder locks are available in two versions depending on the type of piloting: cylinder locks with instantaneous piloting (with a 4 mm passage diameter) and cylinder locks with M5 or 1/8" threaded piloting.

These air operated cylinder locks have a working pressure of 1 bar to 10 bar and a pilot pressure of 4.5 bar to 10 bar. They are designed to operate at a working temperature between -10°C and +80°C.

https://www.senga.fr/en/products-e-shop

Technical features

Field of application: compressed air Working pressure: 1 to 10 bar Operation: unidirectional or 2-way in-line Pilot pressure: between 4.5 bar and 10 bar Working temperature: between -10 °C and +80 °C

Usage scope

Industry Compressed air Cylinders Automation Industrial pneumatics

Opinion on the product

Drop your rating on Pneumatic servovalves

Your answer to the rating from -

OTHER PRODUCTS PNEUMATIC BLOCKER CYLINDER FROM SENGA sas

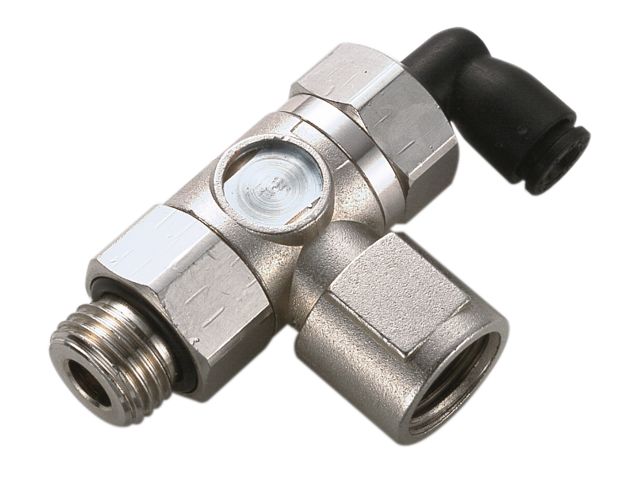

Pneumatic stop-cylinder fittings
