Pneumatic stop-cylinder fittings

Pneumatic blocker cylinder

Vote

“ Stop-cock fittings (exclusive SENGA product) ”

Ask for a quote

Presentation

Exclusive to SENGA, pneumatic stop-cylinder fittings are used to control the movement of a cylinder. They can be used to control the movement of a cylinder, as well as to lock its rod in position, in the absence of any control signal.

They are mounted in pairs directly on the cylinder.

Used in applications where compressed air is used, the cylinder stop fittings operate at a pressure of 1 to 10 bar and are freely rotatable through 360°.

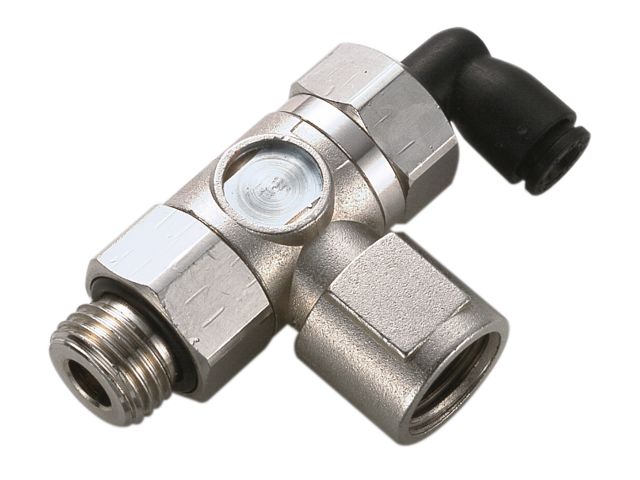

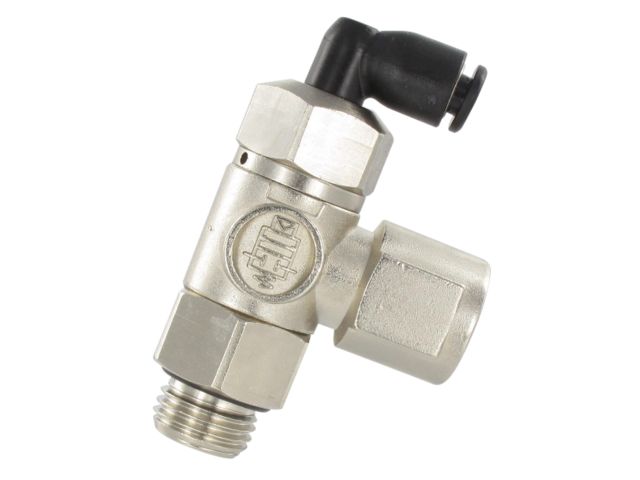

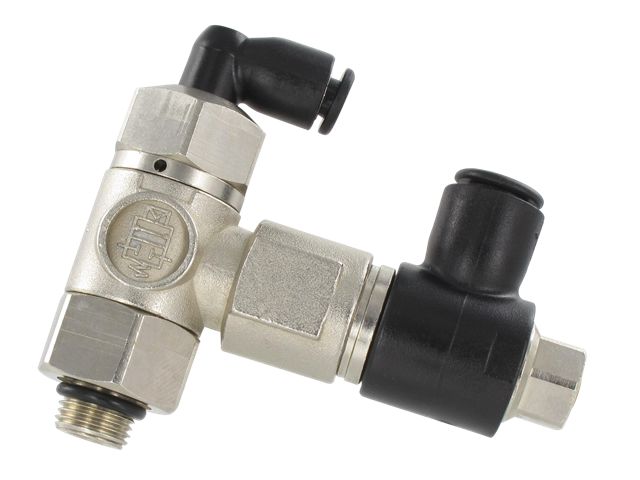

With a nickel-plated brass body, these fittings have FPM (Viton) seals and a cylindrical male BSP thread with seal. They are available in different versions: stop-cylinder fitting with threaded connection, stop-cylinder fitting - exhaust flow regulator and pilot operated non-return valve, with instantaneous connection.

https://www.senga.fr/en/products-e-shop

Technical features

Field of application: compressed air, Blocking of cylinders Pilot pressure: from 2 to 10 bar (BDV/BDVR) Working temperature: between 0°C and +80°C Operating pressure: between 1 bar and 10 bar Material: nickel-plated brass fitting body, seals in FPM (Viton) Maximum number of operations per minute: 10

Usage scope

Industry Automation Compressed air Cylinder Industrial pneumatics
