Polyamide 12 antistatic tube for compressed air

Pneumatic hoses

Vote

“ ✔ Antistatic ”

Ask for a quote

Presentation

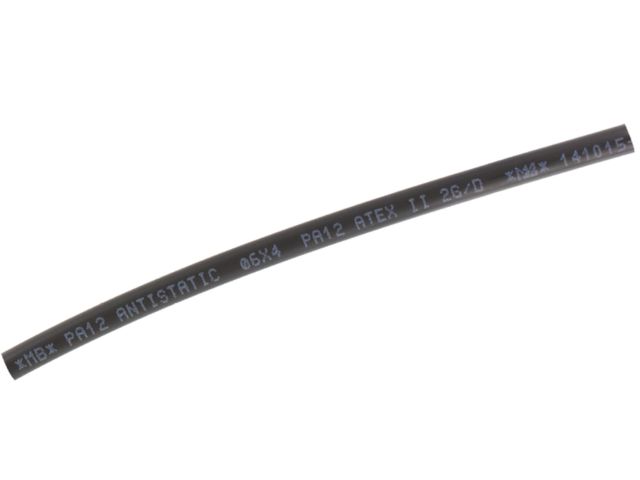

SENGA's polyamide 12 antistatic tubes are recommended for compressed air applications. Designed to avoid the accumulation of electrostatic charges, these tubes are used in the electronic, textile and explosion-proof sectors (ATEXII 2 G/D zones).

With a construction in two-layer antistatic polyamide 12 HIPL, these tubes operate at a pressure of 5 to 25 bar and are used in a working temperature range of -30 to +80°C. The deformation temperature is 101°C in accordance with ISO 75.

These antistatic tubes are distinguished by the outer diameter tolerance of +/- 0.1 mm and by their density of 1.25 g/cm3, according to ISO R 1183D.

https://www.senga.fr/en/products-e-shop

Technical features

Maximum working pressure at 20° C: see table Electrical resistance over length: < 104 Ohms / cm Good fire resistance: flame extinguishes, does not spread Working temperature: between -30 °C and +80 °C 101 °C - (Deformation temperature: ISO 75) Length: 50 m - roll Materials: polyamide - 12 HIPL anti-static two-layer Hardness: 50 - shore D / ISO 868 Density: 1.25 g/cm³ - (according to ISO R 1183D)
