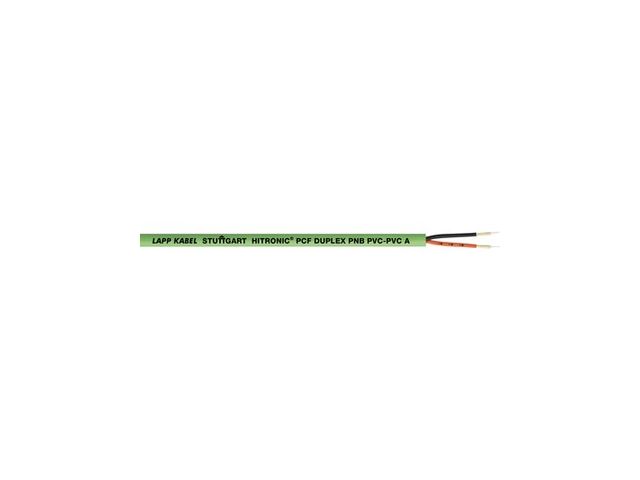

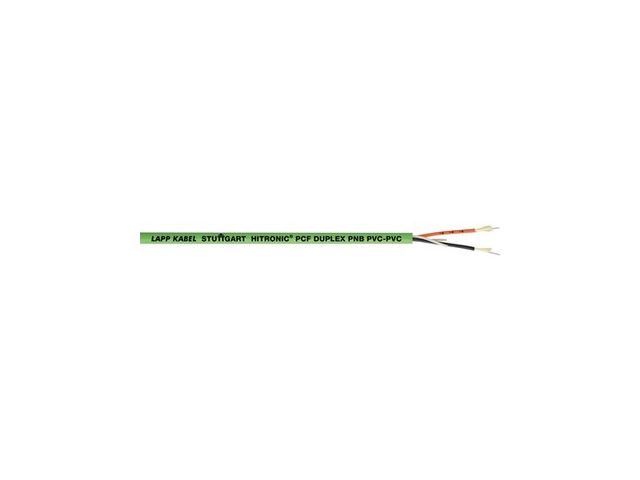

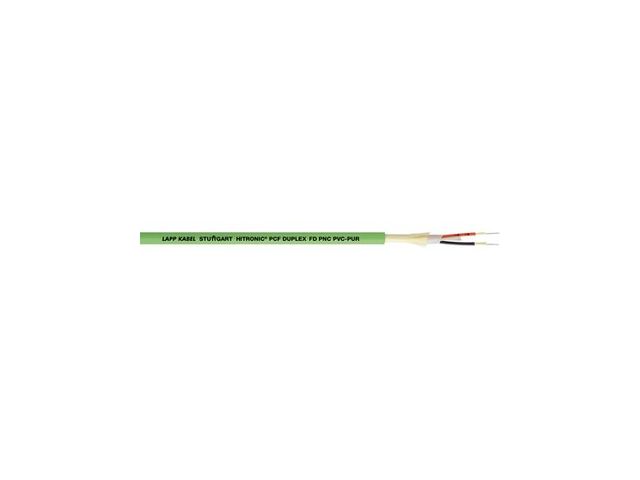

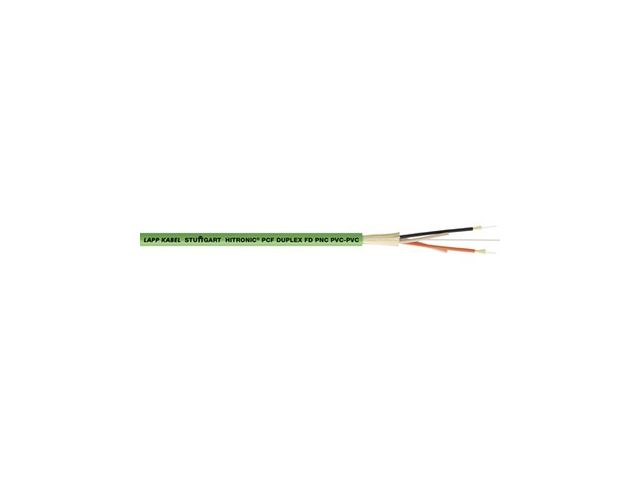

Polymer optical fibre as duplex fibre cable version with PCV or PUR sheath for PROFINET applications type B or C.
PROFINET compliant otical cables accordingly Type B and Type C with 2K200/230 PCF twin cable, colour coded; J-VY(ZN)Y, AT-V(ZN)Y(ZN)11Y
-
PROFINET compliant
- Type B or Type C
-
For direct connector assembly
Benefits
-
Optical data transmisson up to 500m
-
Easy to handle
-
No intereference by external fields
-
No grounding problems
-
Suitable for direct connector assembly
Application range
-
PCF DUPLEX cabels for optical signal transmission in industrial applications
-
PROFINET / Industrial Ethernet
-
At 100 Mbit/s: max 100 m cable length
-
PROFINET type B:
for fixed laying
-
PROFINET type C:
for flexible applications (power chains)
Product features
-
Cable version with PVC outer sheath:
for standard applications in industrial environments
-
Cable version with PUR outer sheath:
for high mechanical or chemical stress in industrial environments
-
PNB - PROFINET-Type B
-
PNC - PROFINET-Type C
-
FD - Highly flexible (power chains)
Norm references / Approvals
-
28055702: with c(UL)us certification
(OFNG 75°C)
-
PUR compound: oil resistant acc. to IEC 60811-2-1 und DIN EN 50363-10-2
Product Make-up
-
Colour-coded, tight-buffered PCF sub-cable with PVC sheath
-
Sub cable outer diameter: 2.2mm
-
Aramid yarns as strain relief
-
Outer sheath material PUR or PVC (see article description)
-
Outer sheath colour: green (RAL 6018)
