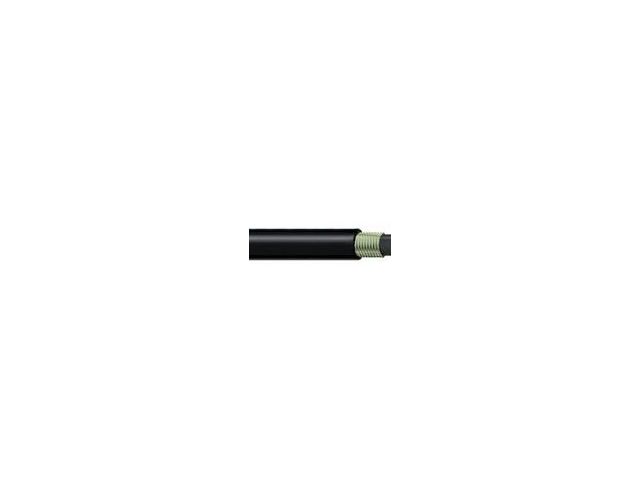

Safety cable with central loose tube, LSZH inner and outer sheath, corrugated steel tape; halogen-free
HITRONIC® FIRE- A/J-DQ(ZN)BH(SR)H- security cable with central loose tube, inner and outer sheath, corrugated steel tape, with single-mode or multimode fibres
-
Fire-resistant for at least
180 minutes in the event of fire
-
* Cable had been tested
to withstand 180 min
Benefits
-
Ensures that the fibres can still transmit
data during and after a fire
(according to IEC 60331-25)
-
Suitable for installation in underground
tunnels where fire safety is critical
-
Additional sheath protects the fibres for use in harsh environments
-
Armouring provides excellent protection
against high mechanical stress and rodents
-
UV-resistant
longitudinally and laterally watertight
Application range
-
In industrial areas that use fire as a tool
-
Highly combustible or fire-prone areas
-
For indoor and outdoor use
-
Methods of Deployment: empty plastic pipes, ducts and trays
Product features
-
Fire behaviour:
- Halogen-free (IEC 60754-1)
- Flame-retardant (IEC 60332-3-24)
- Low smoke density (IEC 61034-1/2)
- Circuit integrity (IEC 60331-25);
Optical fibre cables
-
Central loose tube with up to 24 fibres
-
Colour-coded fibres
-
Longitudinal watertight
-
Outer sheath flame-retardant and halogen-free

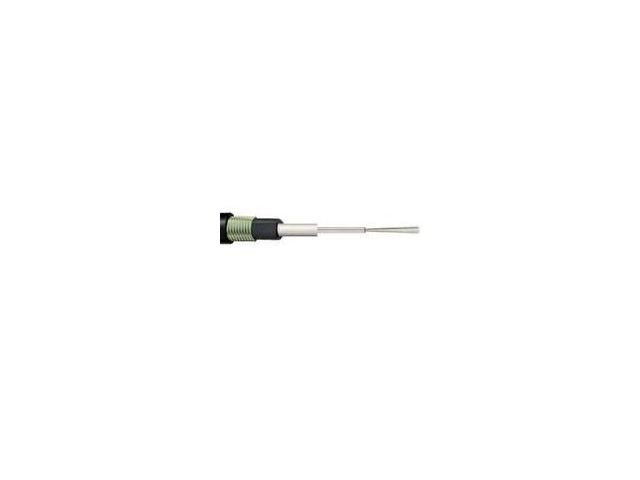

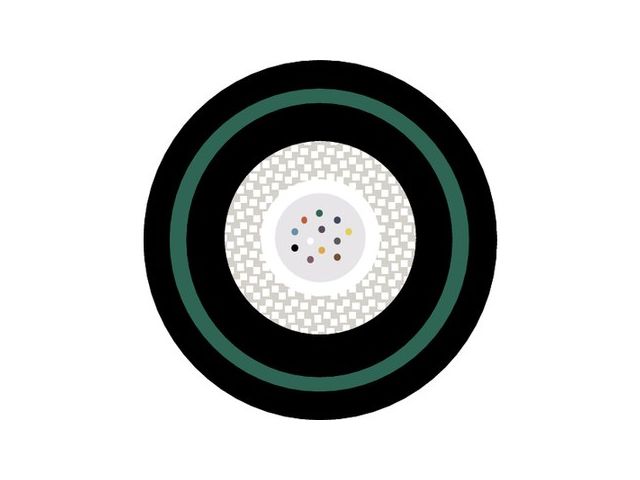

Product Make-up
-
Gel-filled loose tube
-
Water-blocking reinforced glass yarn strain relief
-
Corrugated steel tape armour
-
LSZH inner and outer sheaths
-
Colour: black (RAL 9005)
