Outdoor self-supporting aerial cable with stranded loose tubes, non-metallic strain relief and PE inner and outer sheath; ADSS cable type
HITRONIC® HQA ADSS plus cable, non-metallic, for outside plant aerial, double outer sheath; A-DQ2Y(ZN)2Y
-
ADSS - All Dielectric Self Supporting
-
For harsh weather conditions
Benefits
-
Designed to withstand harsh weather conditions
-
Easy to install due to the compact design, high flexibility, robust sheath and small bending radii
-
UV-resistant
longitudinally and laterally watertight
-
Zero electromagnetic interference as the cable contains no metal (totally dielectric)
Application range
-
For long span widths
-
Hanging on poles
-
For outdoor use
-
Laying on poles
-
Installation on building columns
Product features
-
Stranded loose tubes with up to 96 fibres
-
Colour-coded fibres and loose tubes
-
Mechanical support members (central filler and aramid yarns)
-
Robust, halogen-free outer sheath
-
Span width up to 250m

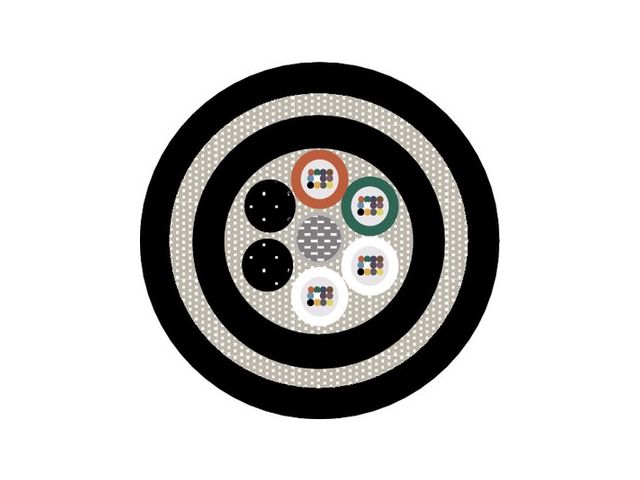

Product Make-up
-
Up to 8 stranded gel-filled loose tubes
-
Central GRP strength element
-
Aramid yarns as strain relief
-
PE inner and outer sheaths
-
Colour: black (RAL 9005)
