Portable CO2 meter : CarboQC

Gas analysis

“ Highly accurate, fully protected - CO2 measurement based on the patented Multiple Volume Expansion method guarantees repeatability standard deviations of up to 0,005 vol.or 0.1 g/L - No influence of other dissolved gases such as air or nitrogen - Fully protected from harsh environments thanks to the robust, IP67 leakproof design - Small, compact, and lightweight design, for super flexibility 10 h at-line operation, CO2 results in just 55 sec - Low sample volume of around 100 mL provides reliable CO2 results, even out of very small packages in the lab - PFD filling device transfers sample from the package into the measuring chamber without any loss of CO2 - CO2 results after only 55 seconds - Intuitive user interface with clearly arranged navigation of the menu - Clear sample identification for full traceability of 500 measurement results - CO2 measurement based on the patented Multiple Volume Expansion method - Integrated rechargeable battery provides up to 10 hours at-line operation Built-in support for sophisticated self-diagnosis and error detection - Data Logger function enables continuous CO2 measurements from the line or tank - Filling Check automatically detects filling errors and generates a warning message - SystemCheck guides the operator through recommended periodic checks Fasr data / settings handling, wireless printing - Bluetooth interface for wireless printing - USB interface for data transfer to a PC - RFID interface for quick changes of measurement settings via RFID tag reading ”

Ask for a quote

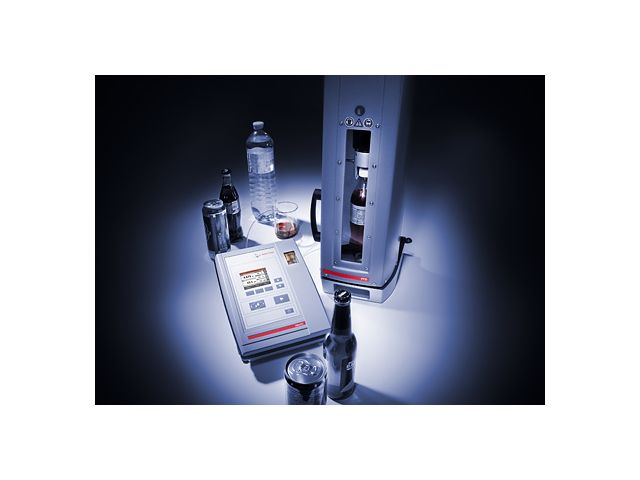

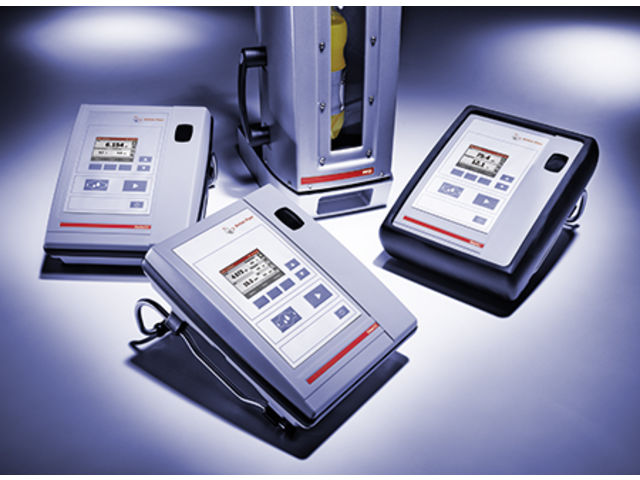

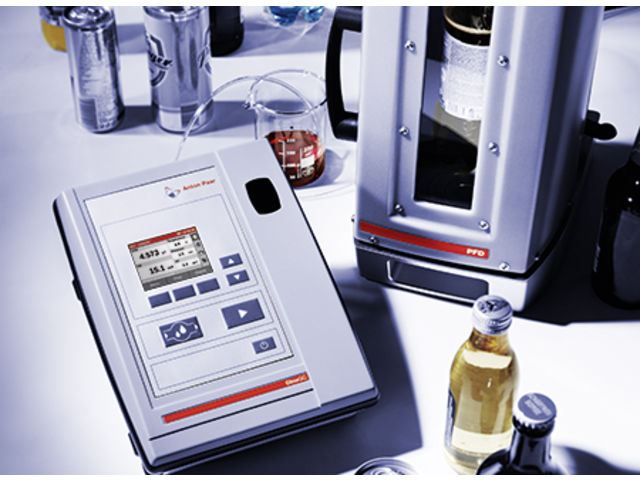

CarboQC and CarboQC At-line are precise CO2 meters allowing reliable quality control for finished packages. They are designed for direct measurements from process lines, tanks, kegs and casks during production and bottling and guarantee fast, accurate, and reliable determination of dissolved carbon dioxyde in beverages. When combined with Anton Paar's filling devices, they permit the sample to be taken directly from the package into the meauring chamber of CarboQC / CarboQC At-line - with no loss of dissolved carbon dioxide during the transfer.

CarboQC standard :

For measuring dissolved carbon dioxide in the laboratory
Guided CO2 system check to ensure correct reulsts
FillingCheck feature for automatic detection of filling errors

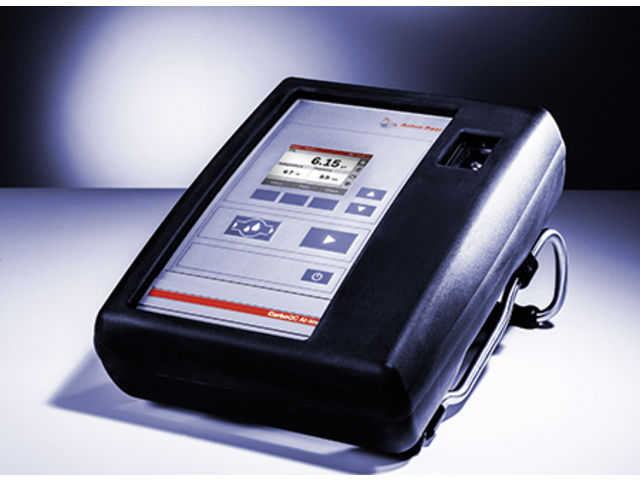

CarboQC At-line :

For measuring dissolved carbon dioxide in the production environment
Guided CO2 system check to ensure correct results
Protection class IP67 and rubber housing

Technical features

quality control on finished packaging Temperature: -3°C to +40°C (27°F to 104°F) Pressure: 0 bar to 10 bar, absolute, (0 psi to 145 psi)

Download the complete technical features

Usage scope

Beverage
