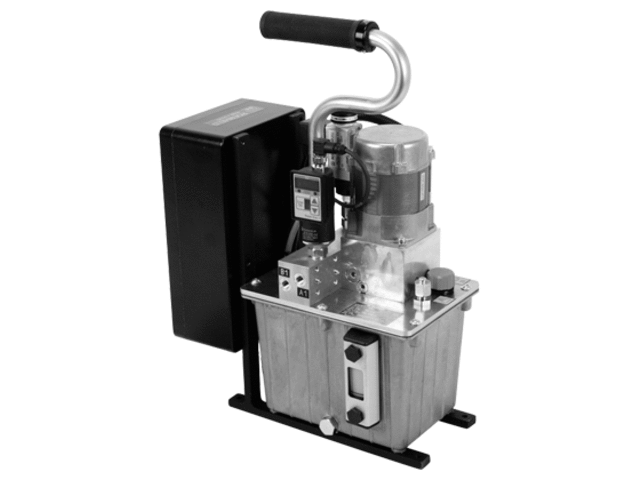

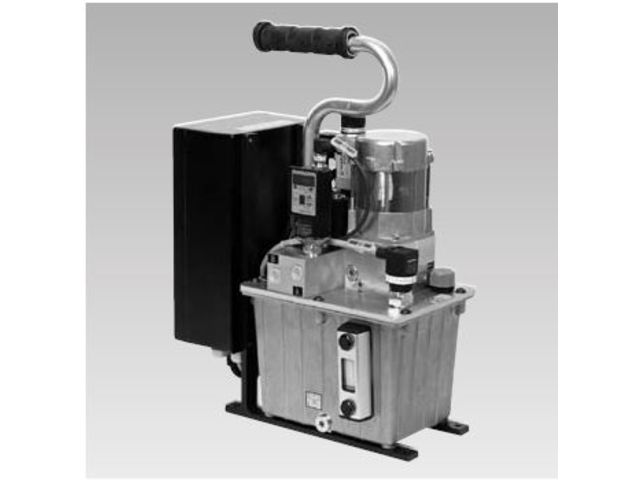

Power Units D 8.010

Application
These power units are especially suitable for the operation of small and simple hydraulic clamping fixtures. One clamping circuit for single or double acting cylinders is available. The low weight also allows mobile use.

Description
Using this power unit, extension and retraction of the cylinders is effected by the change of the sense of rotation of the electric motor. The pump alternatively supplies to port A or port B. The other port is discharged by opening a pilot-controlled check valve. For coupling and uncoupling of a clamping fixture, both ports can be depressurised by means of the clutch switch.

Advantages
* Compact small power unit
* Simple control
* Electronic pressure switch
* Digital pressure display
* Convenient pressure adjustment by teach-in function
* Machine tool interlock as standard
* Electric control ready for connection (optionally also only with terminal box)
* Available for 2 supply voltages
* Oil level and temperature control (option)
* Manual switch or foot switch (alternatively)
* Clutch switch for pressureless coupling and uncoupling of both lines (option)
* Handle for mobile use (option)
