Ideal for Precision Part Movement, Small Part Handling and Positioning, Automated and Manual Assembly, Machine Integration, Robotic Pick-N-Place and Precision Indexing.
Benefits of 3200 Series Precision Move Conveyors:
Specifications:
-
Loads up to 750 lbs (340 kg)
-
Belt speeds up to 517 ft/min (158 m/min)
-
Belt widths: 4” (95 mm) to 18” (457 mm) in 2” increments
-
Conveyor lengths: 2’ (610 mm) to 50’ (15,240 mm)
-
21 tooth H (1/2”) pitch profile timing belt (10 mm Metric pitch available)
-
3.3” (84 mm) pitch diameter drive and idler pulleys turn approximately 10.5” (267 mm) of belt per revolution
-
Optional M5 belt inserts
-

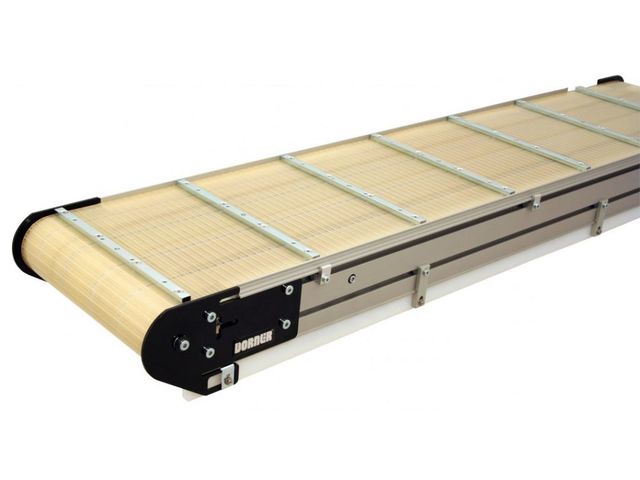

Optional pallet mounting bars, 5/16” x 1/2” plated steel
-
Conveyor package w/ servo motor index repeatability ± 0.02”
-
100 Indexes per minute rated
Features & Benefits:
-
High load capacity urethane belting with kevlar cords (True Timing Belt)
-
No capacity drop when pushing belt
-
All widths feature a single belt for increased mounting flexibility
-
Positive drive no slip belting and side guides provide worry free belt tracking
-
Use optional cleats to create pockets for controlled part flow
-
Minimum pallet mounting bar is spacing 1” in length
-
T-slots make mounting accessories simple with no drilling or special tools
-
Compatible with standard drive packages
-

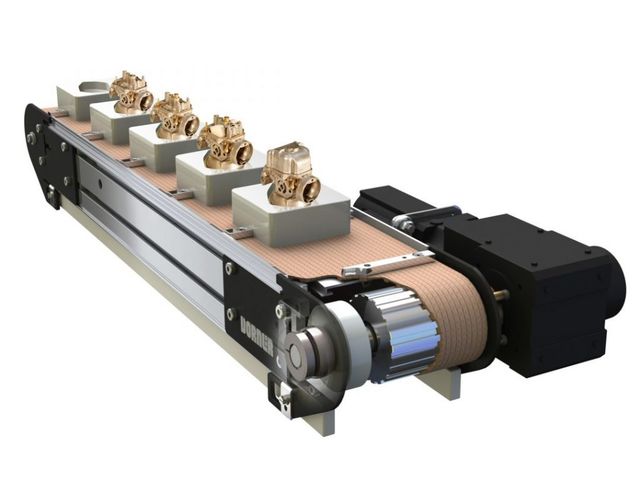

Available with servo motor and mounts for increased accuracy of index
-
Servo package includes fully integrated solution with intuitive PC interface
-
Sealed ball bearings
