Push-in fittings for compressed air and other fluids - 700 Series high pressure

Instant pneumatic fitting

Vote

“ ✔ High pressure (oil, water, grease, compressed air) ”

Ask for a quote

Presentation

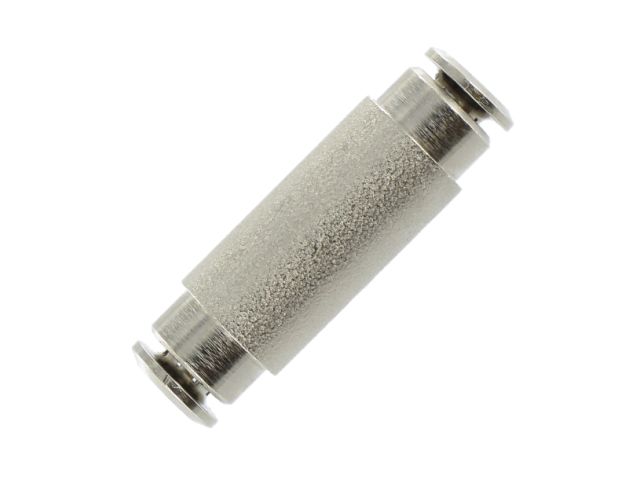

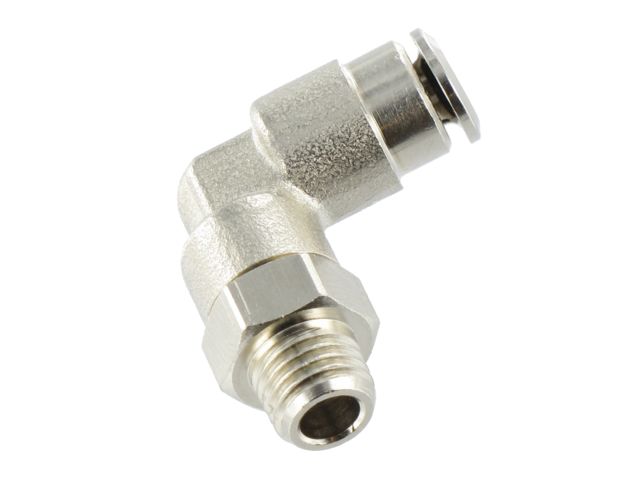

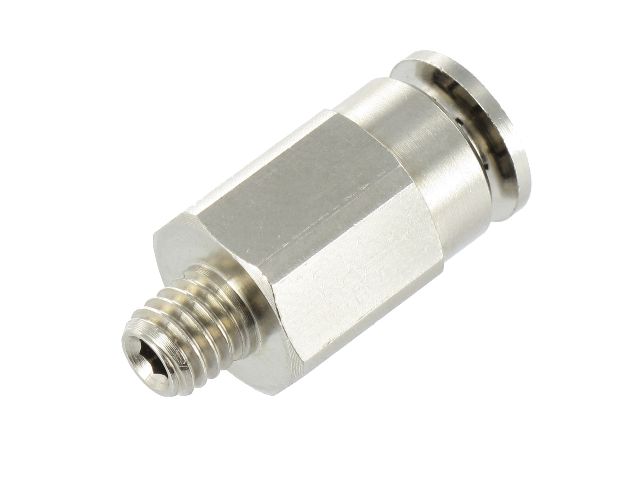

SENGA's 700 Series push-in fittings are mainly used in applications such as lubrication systems, transport and heavy industry.

Compliant with REACH (1907/2006) and RoHS (2011/65/EC) standards, these push-in fittings are suitable for several fluids such as oil, water, grease or compressed air.

The fittings have a nickel-plated brass body and clamp and HNBR O-Ring seals. They can be used with PA6, PA11, PA12, Polyethylene, Polyurethane, etc...

Designed to work at temperatures between -30°C and +150°C, these fittings provide a variable working pressure from 0 bar (0 Mpa) to 30 bar (3 Mpa) with compressed air or 150 bar (15 Mpa) with fluids.

https://www.senga.fr/en/products-e-shop

Technical features

Threads: gas tapered to ISO 7.1, BS 21, DIN 2999 metric tapered to UNI 7707 Compatible fluids: oil, water, grease, compressed air Working temperature: between -30 °C and +150 °C Use with PA6, PA11, PA12, Polyethylene, Polyurethane, etc. pipes: see limits of the pipes used Materials: brass - nickel plated; Recommended tubes: tubes in plastic materials: PA6, PA66 for high pressure Gaskets : HNBR 0 bar - Minimum pressure 30 bar - Maximum pressure with compressed air (3 Mpa) 150 bar - Maximum pressure with fluids (15 Mpa)
