SENGA push-in fittings - 400 Series misting

Instant pneumatic fitting

Vote

“ ✔ Metal body ✔ Easy connection/disconnection ✔ High pressure ”

Ask for a quote

Presentation

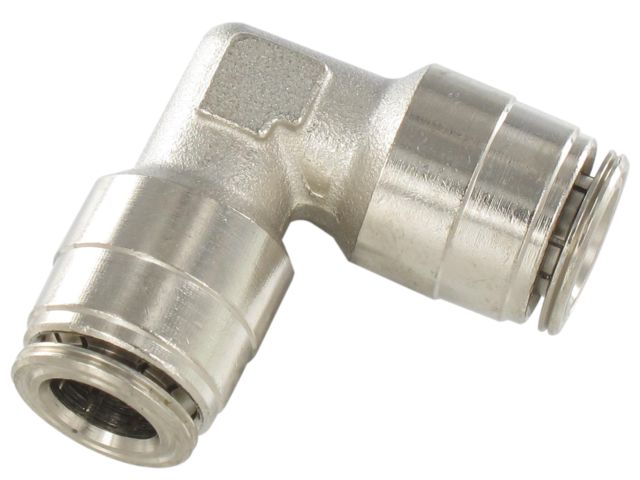

SENGA's 400 series misting push-in fittings are used in civil, agricultural and industrial applications. They are designed to suit applications requiring cooling, dust and odour removal or humidity control.

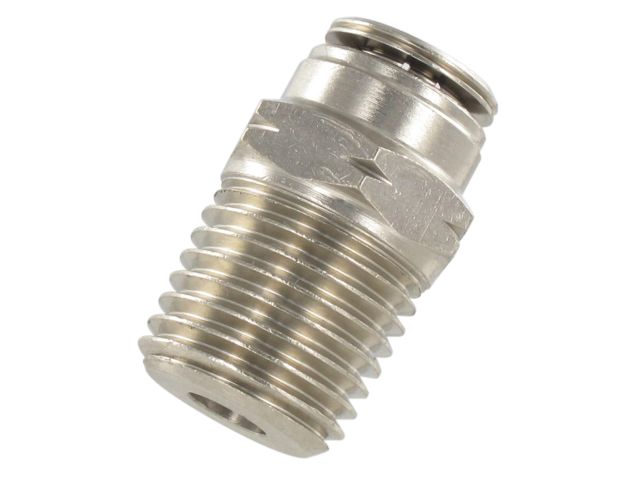

With a nickel-plated brass body, these push-in fittings have a nickel-plated brass threaded base, a teflon-coated BSP tapered thread or a BSP cylindrical thread with a fitted gasket.

In addition, these fittings are equipped with nozzle outlets (available in our range), an oil-resistant NBR rubber seal, free of silicone and a nickel-plated brass clamp.

We recommend the use of high-strength polyamide 12 pipe.

Important: Nozzles with 0.15 and 0.20 holes are generally used for cooling (both in civil and livestock matters), while those with 0.30 and 0.40 holes are mainly used for dust and odour removal and for humidity control.

https://www.senga.fr/en/products-e-shop

Technical features

Maximum pressure: 80 bar Working temperature: - Minimum temperature: - 20°C - Maximum temperature: + 80°C Tolerances on tubes: +/- 0.07 mm up to Ø 3/8 Recommended tube: High strength Polyamide 12 (PA12HR) Materials and components - Nickel-plated brass body UNI EN 12164 CW614N - UNI EN 12165 CW617N - Nickel-plated brass clamp UNI EN 12164 CW614N - NBR seal
