Quick-connect safety couplings ISO 6150 C : non-scratch design

Quick pneumatic fitting

Vote

“ ✔ Anti-hose whip safety : ISO 4414 ✔ Non-scratch design ✔ Two pushes, for a better safety ✔ Ergonomic design for an easy handling ✔ Light weight and non-scratch design : external components in reinforced resin ✔ Space optimized design ✔ Manually adjustable ”

Ask for a quote

Presentation

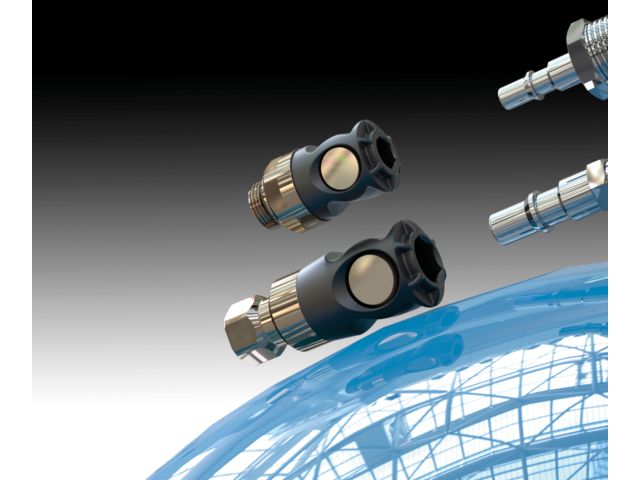

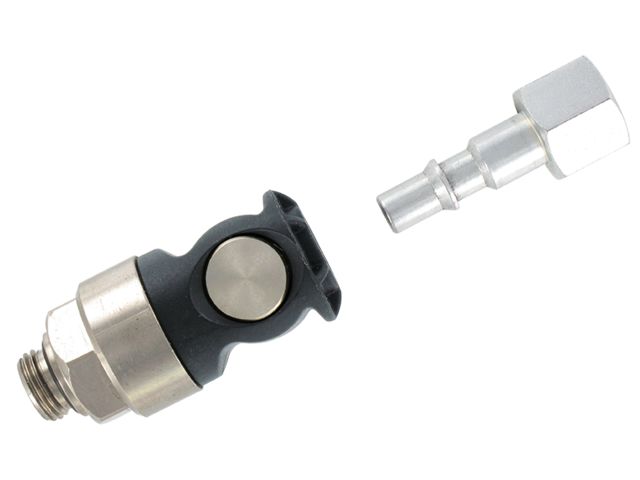

Quick-connect safety couplings ISO 6150 C : non-scratch design and anti hose whip design

Standard ISO 6150 C-10 and ISO 6150 C-14 - Serie SP40

Orifice : Ø5.5 mm and Ø8 mm
Anti-hose whip safety : ISO 4414
Double push disconnection
Protected push-button
Connection force : 61 N and 109.1 N (at 6 bar)
Weight : 52 gr and 78 gr (G1/4'' male)
Section : 23.75 mm² and 50.26 mm²
Working pressure : 0÷12 bar and 0÷10 bar
Flow rate : 680 Nl/min and 1780 Nl/min (at 6 bar, Δp = 1 bar)
Working temperature : -20°C÷70°C

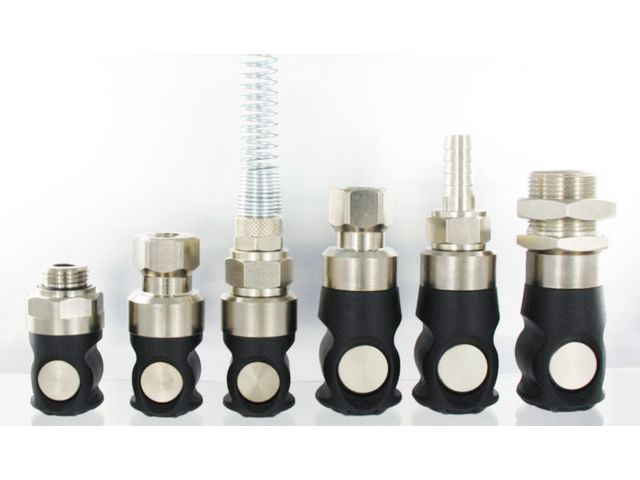

A wide range to meet your needs...
Respects the operator, respects the surfaces...

Two pushes, for a better safety
Ergonomic design for an easy handling
Light weight and non-scratch design : external components in reinforced resin
Space optimized design
Manually adjustable

https://www.senga.fr/en/products-e-shop

Technical features

Orifice : Ø5.5 mm and Ø8 mm Anti-hose whip safety : ISO 4414 Double push disconnection Protected push-button Connection force : 61 N and 109.1 N (at 6 bar) Interchangeable with Rectus 18 and 84 - CEJN 291 - PREVOST CSI 06 and CSI 08 - STAUBLI NSI Section : 23.75 mm² and 50.26 mm² Working pressure : 0÷12 bar and 0÷10 bar Flow rate : 680 Nl/min and 1780 Nl/min (at 6 bar, Δp = 1 bar) Working temperature : -20°C÷70°C

Download the complete technical features
