Quick-connect safety couplings ISO 6150 B - Serie SN

Quick pneumatic fitting

Vote

“ ✔ Anti-hose whip safety : ISO 4414 ✔ Two pushes, for a better safety ✔ Manually adjustable ”

Ask for a quote

Presentation

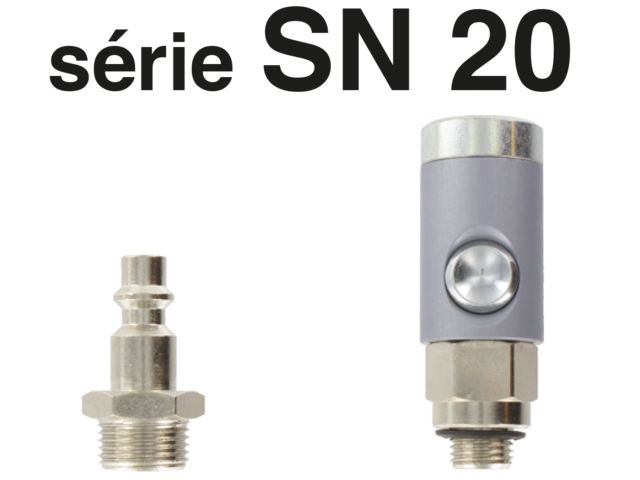

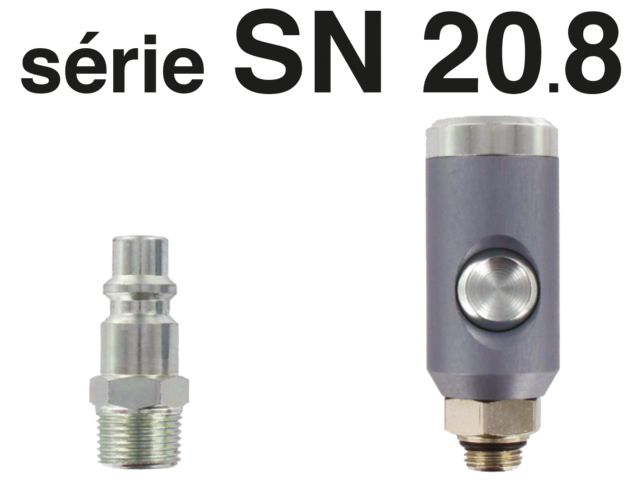

Quick-connect safety couplings ISO 6150 B - Serie SN :

Technical features :

Orifice : Ø5.5 mm and Ø8 mm
Anti-hose whip safety : ISO 4414 standard
ISO 6150 B-12 and ISO 6150 B-15 standards
Double push disconnection
Section : 23.75 mm² and 50.26 mm²
Working pressure : 0÷16 bar and 0÷12 bar
Flow rate : 780 Nl/min and 1650 Nl/min (at 6 bar, Δp = 1 bar)
Working temperature : -20°C÷+70°C
Interchangeable with RECTUS 23/24 - PARKER PB/PBF - 1/4''- CEJN 310 - RECTUS 30 - PARKER PB/PBF - 3/8''
Single shut-off

--------------------------------------------------------------------------------------------------------------------------------------------------------------

For any further information, please consult our catalogue.

https://www.senga.fr/en/products-e-shop

Technical features

Areas of application : compressed air Orifice : Ø5.5 mm and Ø8 mm Anti-hose whip safety : ISO 4414 ISO 6150 B-12 and ISO 6150 B-15 standards Double push disconnection Working pressure : 0÷16 bar and 0÷12 bar Flow rate : 780 Nl/min and 1650 Nl/min (at 6 bar, Δp = 1 bar) Section : 23.75 mm² and 50.26 mm² Working temperature : -20°C÷+70°C Interchangeable with RECTUS 23/24 - PARKER PB/PBF - 1/4''- CEJN 310 - RECTUS 30 - PARKER PB/PBF - 3/8''
