Radar measurement | Time-of-Flight Micropilot FMR10

Level sensors

Vote

“ - Non-contact radar with Bluetooth® commissioning, operation and maintenance app - Most compact radar due to unique radar chip design offering perfect fit in limited space applications - Best price-performance-ratio radar - Perfect application fit for water & wastewater and utilities in all industries (IP66, IP68 / NEMA4x /6P) - Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions - Easy setup with three main parameters suits for most applications - Simple, safe and secure wireless remote access via Bluetooth® ”

Ask for a quote

Presentation

Level measurement in liquids for water & wastewater and utilities in all industries

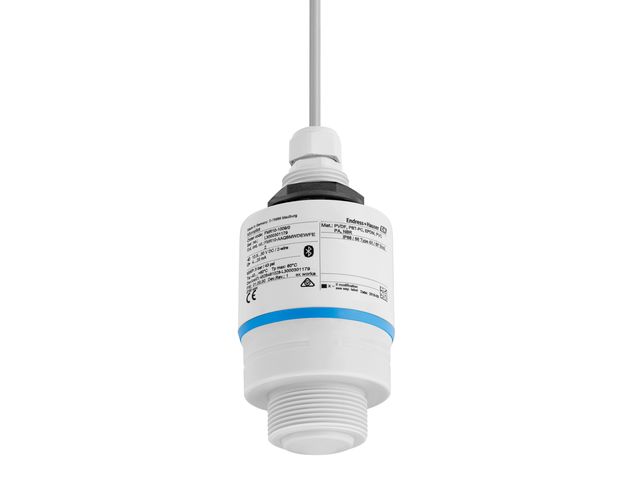

Micropilot FMR10 offers continuous non-contact level measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries.

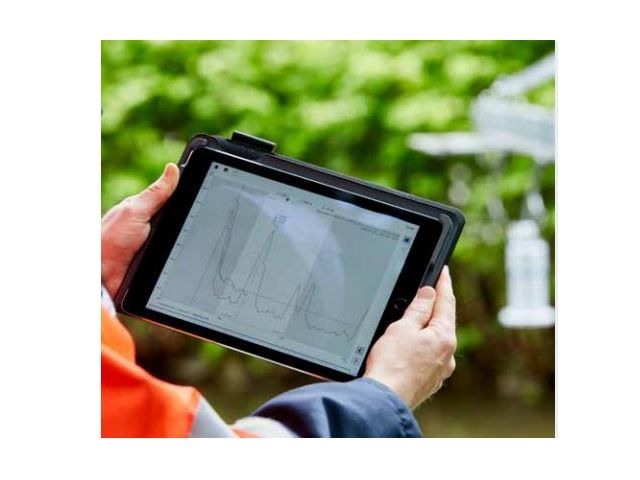

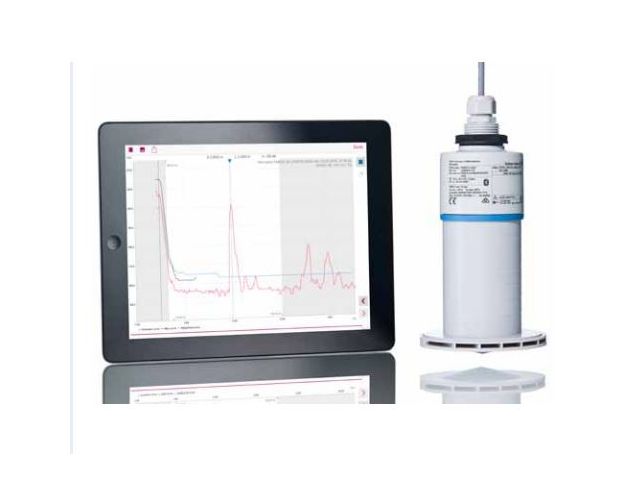

FMR10 belongs to the first radars with Bluetooth® commissioning, operation and maintenance app. Signal curves can be shown via app on every Bluetooth®-enabled smartphone or tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

Technical features

Measuring Principle : Level radar Process connections : Threads Process temperature: -40 to +60°C (-40 to +140°F) Process pressure : -1 to +3bar (-14.5 to +43psi) Maximum measuring range : up to 12m (39ft) with mounted flooding tube protection Accuracy: ±5mm (0.2'') Measuring frequency: 26GHz Max. measurement distance : 8 m Certificates / Approvals : CSA C/US Communication : Bluetooth® wireless technology

Download the complete technical features
