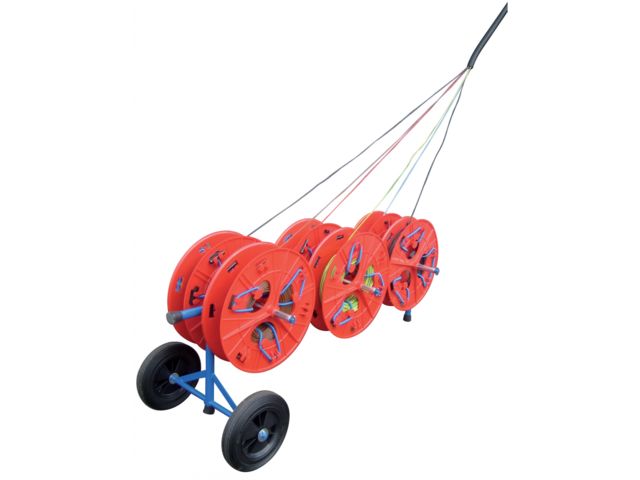

Range QUAD®

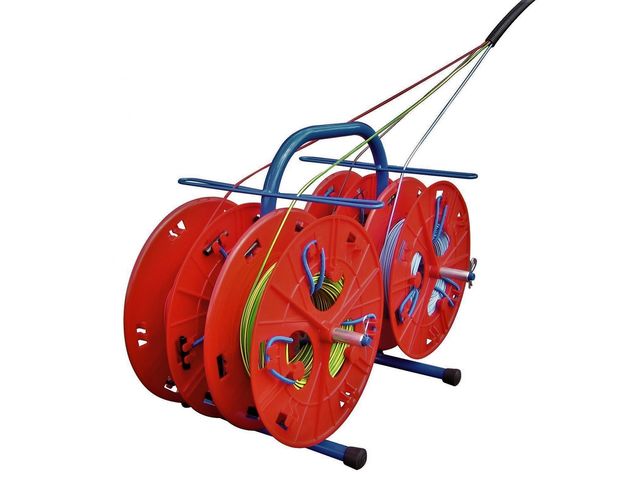

QUAD®

Spool with straps. Patented model.
Allows to pull several wires together to put them in a sheath.

The wires are no longer likely to become entangled and are not twisted.
Equiped with patented sandows spools.
Wire guide.
Frame in epoxy powder coated steel tube.
Spools : ABS plastic flanges , zinc-plated steel shaft.

Weight : 4,6kg
Dimensions : l310 x P620 x H430mm
Delivered with : 4 spools
Brake : Yes

Code E3300333

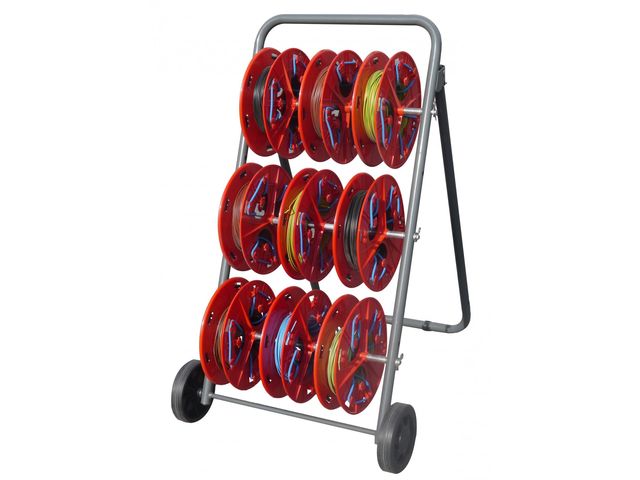

NOVOQUAD

Spool with straps. Patented model.
Allows to pull several wires together to put them in a sheath.
The wires are no longer likely to become entangled and are not twisted.
Equiped with patented sandows spools.
Frame in epoxy powder coated steel tube.
Spools : ABS plastic flanges , zinc-plated steel shaft.
Weight : 14kg

Dimensions :

- Folded : l650 x P300 x H1150mm
- Open : l650 x P850 x H1040mm
Deliverd with : 9 spools
Brake : No

Code E3500900

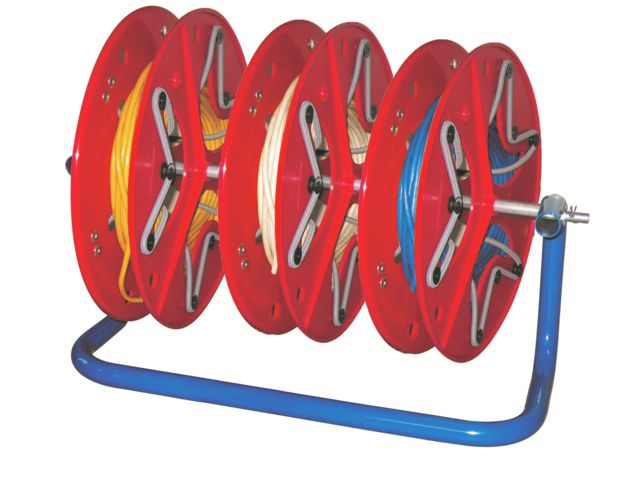

MINOQUAD

Spool with straps. Patented model.
Allows to pull several wires together to put them in a sheath.
The wires are no longer likely to become entangled and are not twisted.
Equiped with patented sandows spools.
Frame in epoxy powder coated steel tube.
Spools : ABS plastic flanges , zinc-plated steel shaft.

Weight : 4,3kg
Dimensions : l550 x P250 x H275mm
Delivered with : 3 spools
Brake : No

Code E3500300

UNIQUAD

Spool with straps. Patented model
Allows to pull several wires together to put them in a sheath.
The wires are no longer likely to become entangled and are not twisted.
Equiped with patented sandows spools.
Frame in epoxy powder coated steel tube.
Spools : ABS plastic flanges , zinc-plated steel shaft.

Weight : 1,95kg
Dimensions : l340 x P230 x H450mm
Delivered with : 1 spool
Brake : Yes

Code E3500100 (spool diameter : 300 mm)
Code E3500104 (spool diameter : 400 mm)

MAXIQUAD

Spool with straps. Patented model.
Allows to pull several wires together to put them in a sheath.
The wires are no longer likely to become entangled and are not twisted.
Equiped with patented sandows spools.
Frame in epoxy powder coated steel tube.
Spools : ABS plastic flanges , zinc-plated steel shaft.

Weight : 7,6kg
Dimensions : l400 x P990 x H470mm
Delivered with : 6 spools
Brake : Yes

Code E3500777
