Raytek CM Miniature IR Sensor for OEM Applications Fluke Process Instruments GmbH

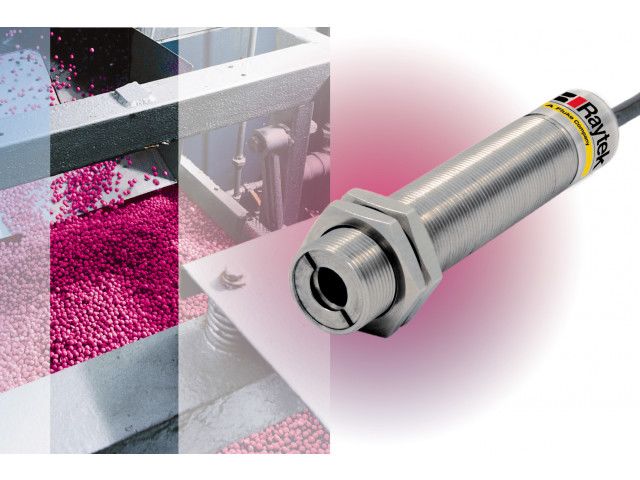

Raytek CM Miniature IR Sensor for OEM Applications

Pyrometers

Vote

Ask for a quote Receive Documentation Contact the supplier

Wide temperature range from -20°C to 500°C
13:1 optics at 90% energy
150 ms response time
Scaleable 0 – 5 V output or t/c type J or K output
Alarm output
Sensor status/self diagnostic indicator LED
RS232 digital communications for sensor set-up and monitoring
Adjustable signal processing
Rugged IP65 stainless steel housing
DataTemp Multidrop software compatible
Accessories for air purging and lens protection

Measured temperature range: - 20°C to 500°C Ambient temperatures: 0 to 70°C Optical resolution: 13:1 optics at 90% energy Spectral Response: 8 to 14 μm Accuracy: mV ±1,5% of reading or ±2°C, whichever is greater Temperature Resolution: 0,1°C Response time: 150 ms (95%) Power supply: 24 VDC, ±20%, 10 mA Analog output: Model specific type J or K or scaleable 0 to 5 V voltage output Serial interface: RS232 (two-way)
Download the complete technical features
