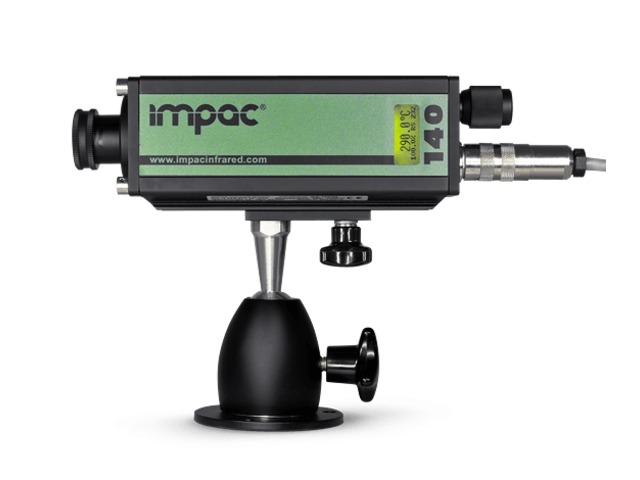

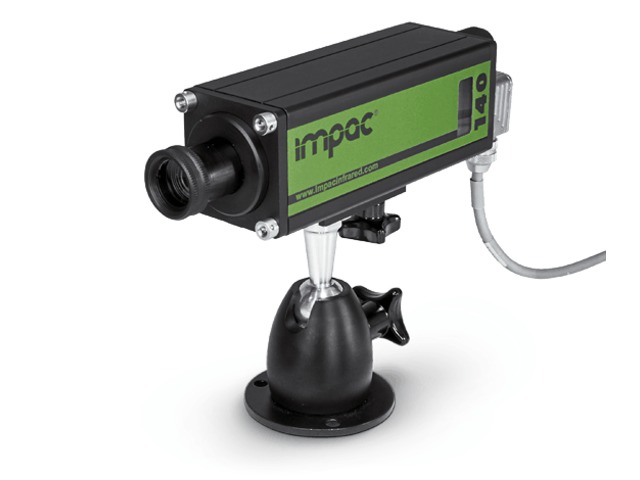

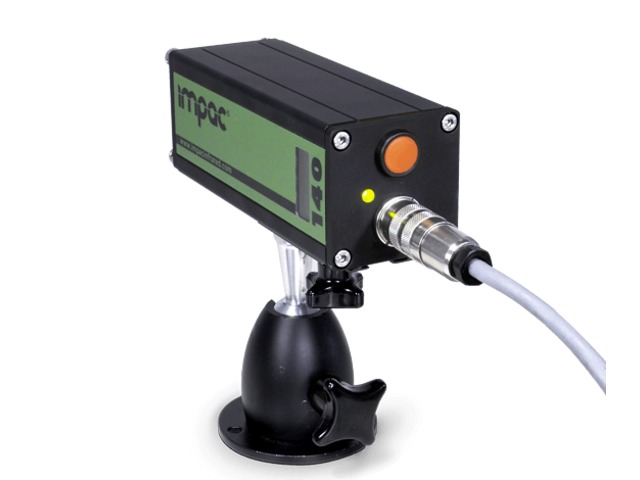

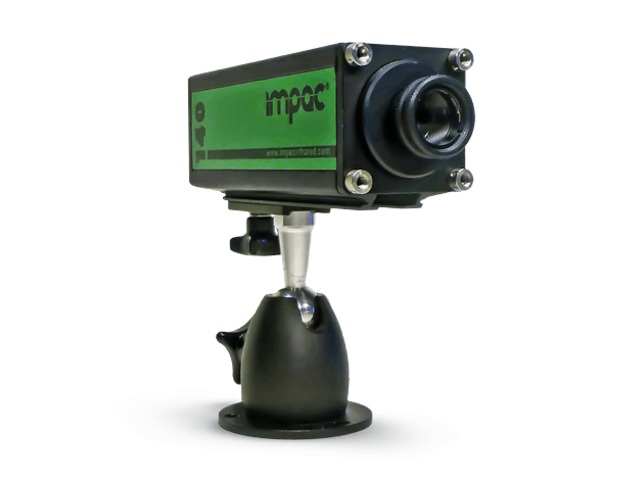

IMPAC Pyrometer IPE 140

Pyrometers

Vote

Ask for a quote

Presentation

Highly accurate, fully digital, fast Pyrometer with focussable optics for non-contact temperature measurements on metals, ceramics, graphit etc. between 5 and 1200 °C.

The IPE 140 are digital, highly accurate pyrometer for non contact temperature measurement on metals, ceramics, graphite etc. For optimal match of the instrument to the application different focusable optics with extremely small spot sizes are available.

The pyrometer parameters can be selected via the integrated key pad, the settings are indicated on the built-in LC-Display. In measuring mode the actual temperature is indicated.

The pyrometers are equipped with RS232 and RS485 serial interfaces (switchable inside the pyrometer). This enables additionally the reading of temperature and pyrometer parameters via the provided InfraWin PC-software.

If neccessary the parameters also can be changed via PC. A laser tergeting light of thru-lens view fidner for exact alignment of the pyrometer is available.

Technical features

Temperature ranges between 5 and 1200 °C Short response times, min. 1.5 ms Extremely small spot sizes, min 0.7 mm Built in digital display with temperature indication Optimized thru-lens view finder or laser targeting light Test current output Housing with precision mounting rail for safe mounting and accurate alignment Interface RS232 / RS485 switchable Focusable optics

Download the complete technical features
