“ Robotic rotary bell atomizer with external charge electrodes & multi-trigger technology for water-based materials ”

Ask for a quote

Presentation

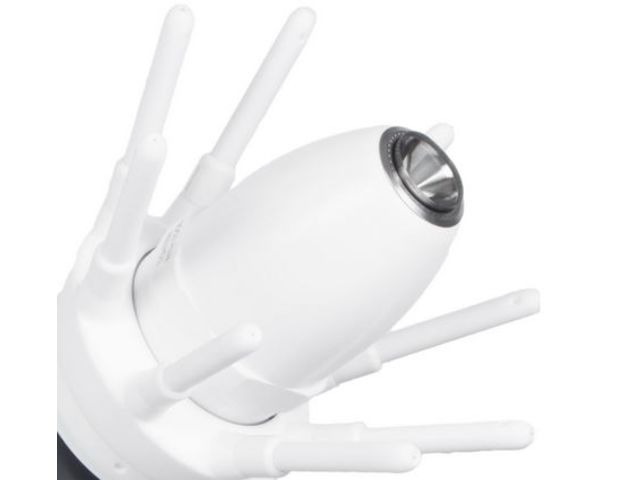

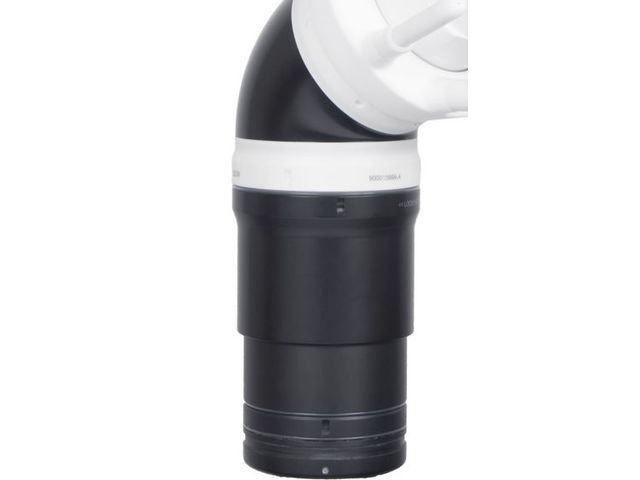

PPH 707 EXT external charge sprayer is dedicated to the application of waterborne materials.
The performances of atomitzer and components are the same as the PPH 707 SB (dedicated
to solvent paints); it is the benchmark in automotive finishing with external charge
thanks to its Hi-TE technology. This version of the PPH 707 EXT features Multi-Trigger technology, which integrates a color change block in the body of the atomizer. This color change block allows for 1 super-high runner and 5 high runners, saving paint on color changes.

High finish quality
High transfer efficiency
Easy integration

Performance

High rotating speed
High voltage unit
Hi-TE dual shaping air
Dual circuit for fast color change

Productivity

Extremely low contamination by Dual Pin technology
Large range of bell cups
Lightweight for any painting robot
Remote bell monitoring device

Sustainability

High reliability for Automotive applications
Long life High Voltage Unit
2.5 million cycle valve life
Titanium bellcup for longer life
7 year/30 000 hr turbine warranty*

Easy to maintain

Magnetic bellcup fastening system
Quick disconnect
Easy access to valves & fittings
Body designed to prevent dust & droplets
No calibration tool required

*whichever is sooner

Technical features

Weight: 10.2 (22.5) kg (lbs) Standard Material Supply Pressure : 6 - 8 (87 - 116) bar (psi) Maximum Material Pressure : 10 (145) bar (psi) Minimum Paint Flow : 30 (0.008) cc/min (gal/min) Standard Paint Flow: 400 (.106) cc/min (gal/min) Maximum Paint Flow : 700 (.185) cc/min (gal/min) Rotation Speed: 15000 - 70000 rpm Voltage Max: 85 kV Current Max : 500 µA
