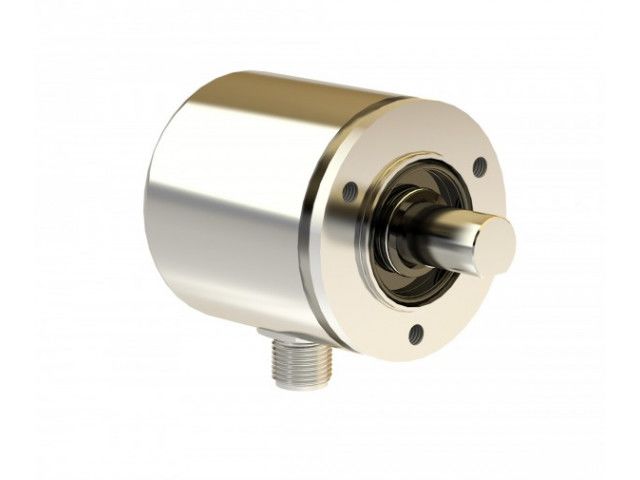

Rotary encoder TBA50 TWK-ELEKTRONIK GmbH

Rotary encoder TBA50

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

Robust case with wall thickness of 5 mm either in seawater resistant aluminum or in stainless steel - shaft and ball bearings in stainless steel - rotating components with permanent magnet in front chamber - electronic circuit with ASiC and Hall elements and interface components fitted within main chamber, separated from rotating components by a metallic wall - optional potting against water jets (IP 69K) - electrical connections via round plug or lead exit.

Inkremental or absolute: Absolute Interface: Analogue Single- or Multiturn: Singleturn Design: 50mm Housing material: Aluminium, Stainless steel Flange and shaft: Synchroniser flange Measuring range: 360° Signal path: CCW (optional), CW Electrical connection: Cable 1m, Device connector M12 x 1 Output signal analogue: 0 to 10VDC, 0 to 20 mA, 4 to 20 mA, ± 10VDC
Download the complete technical features

Drop your rating on Rotary encoder TBA50

Your answer to the rating from -

OTHER PRODUCTS ABSOLUTE ENCODERS FROM TWK-ELEKTRONIK GmbH

Rotary encoder TBB50

Rotary encoder TBB50

 Ask for a quote
Rotary encoder TBN42/S4 SIL2

Rotary encoder TBN42/S4 SIL2

 Ask for a quote
Rotary encoder TBN58/R2 redundant

Rotary encoder TBN58/R2 redundant

 Ask for a quote
Rotary encoder TME42

Rotary encoder TME42

 Ask for a quote
Rotary encoder TRD

Rotary encoder TRD

 Ask for a quote
Rotary encoder TMA42

Rotary encoder TMA42

 Ask for a quote

Check out all the products from absolute encoders from TWK-ELEKTRONIK GMBH

INTERNET USERS ALSO CONSULTED ON THE CATEGORY ABSOLUTE ENCODERS

MAGNETIC ABSOLUTE ENCODERS

MAGNETIC ABSOLUTE ENCODERS

 Ask for a quote
Encoders Absolute multiturn Sendix 5888, PROFIBUS, Ø 58 mm, optical, Hollow shaft.

Encoders Absolute multiturn Sendix 5888, PROFIBUS, Ø 58 mm, optical, Hollow shaft.

 Ask for a quote
Encoders Absolute multiturn Sendix 5863FS2, Ø 58 mm, optical, shaft.

Encoders Absolute multiturn Sendix 5863FS2, Ø 58 mm, optical, shaft.

 Ask for a quote

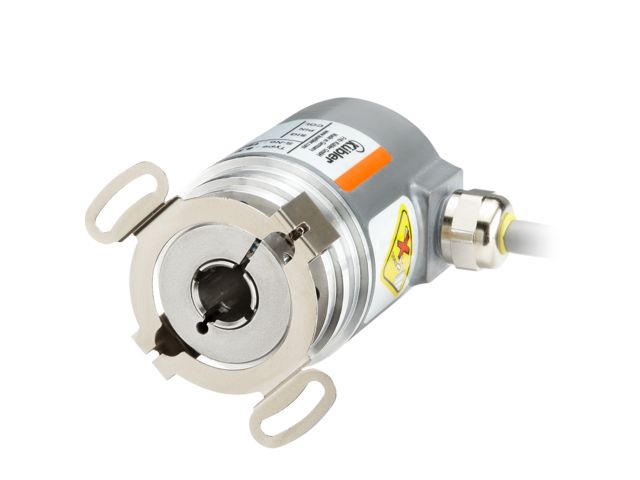

Encoders Absolute multiturn Sendix M3663R, SSI, gray, binary Ø 36 mm, magnetic, shaft.

Encoders Absolute multiturn Sendix M3663R, SSI, gray, binary Ø 36 mm, magnetic, shaft.

 Ask for a quote
Rotary encoder - ETx25

Rotary encoder - ETx25

 Ask for a quote

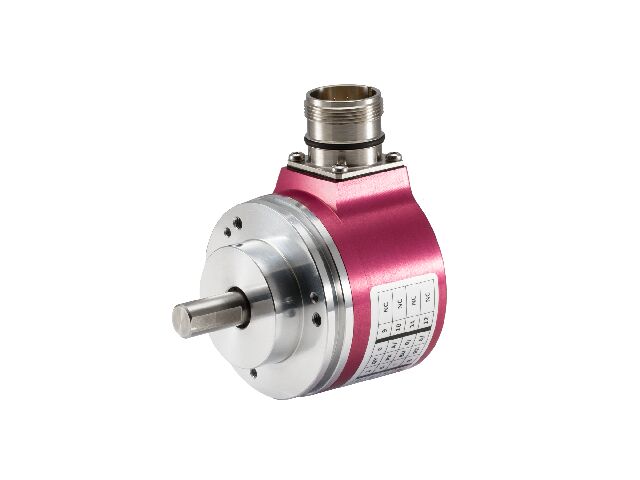

Absolute optical encoder | AK Industries
