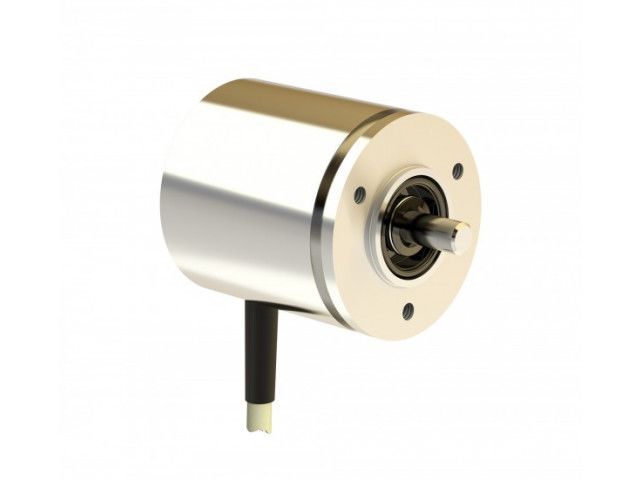

Rotary encoder TBN42/S4 SIL2 TWK-ELEKTRONIK GmbH

Rotary encoder TBN42/S4 SIL2

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

A positive-locking mechanical connection between the cus-tomer’s shaft and the sensor shaft ensures that the magnet in the sensor shaft precisely reflects the rotation of the cus-tomer’s shaft. With the TBN model, one rotation (i.e. max. 16,384 steps) is recorded.With the subsequent absolute transmission, the TRN shaft encoder reaches a measuring range of up to 4096 rotations. The position and speed values (PDO - Process Data Object) are output via the CANopen protocol.

Inkremental or absolute: Absolute Interface: CANopen Safety Single- or Multiturn: Singleturn Design: 42mm Special feature: SIL2/PLd Flange and shaft: Synchro flange, shaft 6mm Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Resolution: 4096 steps/revolution 12-bit, 8192 steps/revolution 13-bit, 16384 steps/revolution 14-bit Code type: Binary Profile: CANopen safety SIL2-certified, Profil No. 4.0.2
Download the complete technical features
