Rotary encoder TRD

Absolute encoders

Vote

Ask for a quote

Presentation

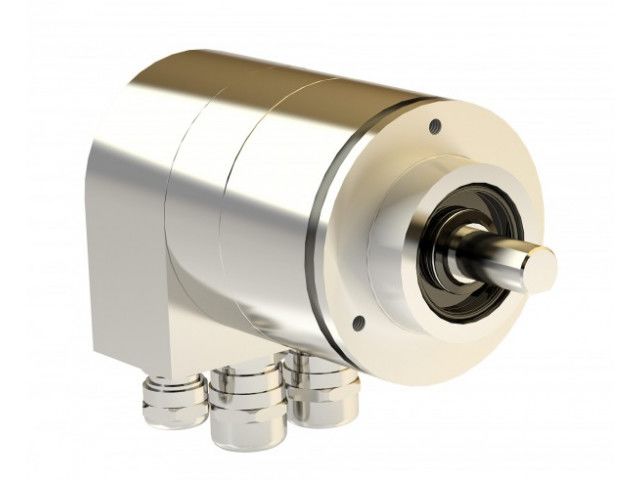

Recording of the angular position and revolutions by mens of Hall sensors - multiturn version with absolute transmission for up to 4096 revolutions - data output plus parameterisation and diagnosis via Profibus-DP. Robust housing manufactured from seawater-proof aluminium or stainless steel - stainless steel shaft - ball bearing with radial shaft seal - sensor circuit consisting of ASIC with Hall elements - electrical connections via the connecting cap with threaded cable connections. The absolute encoders are designed for direct connection to the PROFIBUS-DP. The interface is implemented with the SPC3 Siemens PROFIBUS controller. The protocol corresponds to DP-Slave Class 2 functionality in accordance with Profibus profile for encoders, No. 3.062, and is described in detail in the TRD 12770 user manual. The TRD is mechanicallly and electrically compatible with the electro-optical encoder CRD.

Technical features

Inkremental or absolute: Absolute Interface: PROFIBUS Single- or Multiturn: Multiturn Design: 58mm, 64mm, 65mm, 66mm, 90mm, 105mm, 125mm Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Resolution: 4096 steps/360°<) Code type: Binary Measuring range: 10 measuring lengths in metres for the draw wire version. Possible values: 6 and 10,4096 revolutions Profile: Class 2 according to encoder profile No. 3.062 Connection cover: Connection cover
