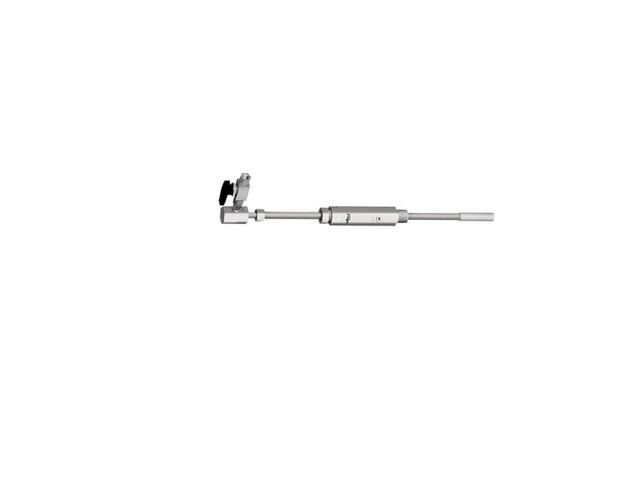

Sampling probe without membrane for gas and liquid sample | GENIE 760

Electrodes, Measuring probes

“ Easy maintenance in the field Long service life Probe design prevents harmonic oscillations from occurring Easy maintenance ”

Ask for a quote

The Direct Drive™ Model 760 is an adjustable length probe without a membrane tip. It can be used to sample liquids, gases that do not require a membrane or contain more entrained liquid than a membrane can handle, or high temperature gases. The 760 can be safely inserted into pressurized sources up to 3750 PSIG. Unlike other competitive insertion probes that require brute physical force or hydraulics applied to the backside of the probe for insertion, this probe is easily installed through a full port valve using either an open end or speed wrench.

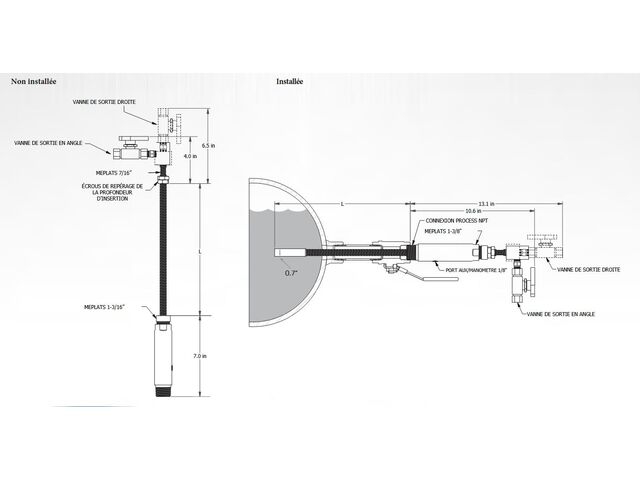

The 760 probe is offered with optional coatings from Silcotek™. The Model 760 can be mounted vertically or horizontally, and its installation process is simple and straight forward.

Many features of the 760 combine to make it the safest, most durable probe available on the market. It’s unique, one-piece body design with double mechanical safety interlocks to prevent the probe from self-retracting under any failure scenario. A thread die cleans the probe’s threads to ensure proper engagement with mating parts, providing for a smooth retraction even after extended periods of service.

A Genie® 133 Probe Assembly option is available for gas sampling applications where a membrane tipped probe cannot be used. This simple assembly includes a Genie® Supreme Model 133 Membrane Separator™ mounted onto the outlet of a Direct Drive™ Model 760. See Genie® 133 literature for details.

Technical features

Unique, one piece body design Adjustable length Antifriction internal thread die Non-rigid probe connection/seal provides mechanical dampering between probe and probe base Speed wrench for faster installation Horizontal or vertical mounting Easy, quick, and safe insertion and extraction from pressurized systems without a special insertion device

Download the complete technical features

Usage scope

Spot, composite, or continuous gas sampling Any process industry including natural gas, petrochemical, and oil refining Gas sampling of mixtures containing less than 30% hydrogen
