SCOPIX IV portable analyser-oscilloscopes with 2 or 4 isolated channels CHAUVIN ARNOUX

SCOPIX IV portable analyser-oscilloscopes with 2 or 4 isolated channels

Portable oscilloscope

Vote

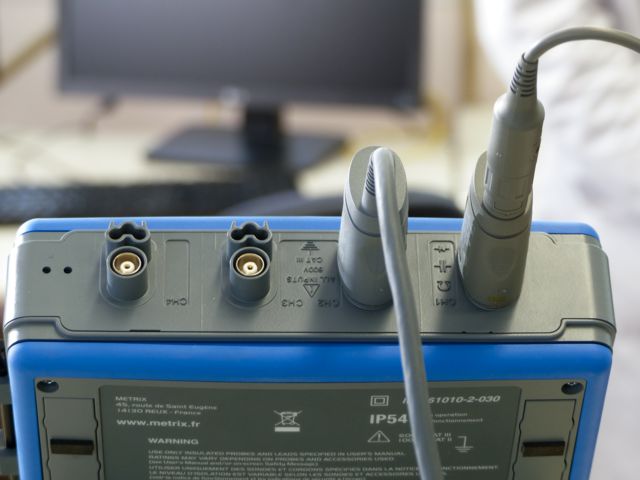

“ 5 instruments in 1 : 5 good reasons to choose a SCOPIX IV OSCILLOSCOPES WITH ISOLATED CHANNELS NEW GENERATION Oscilloscope, multimeter, analyser and recorder modes, with the recorded files directly viewable on the oscilloscope. Safety: channels genuinely isolated from one another and from the earth, 600 V CAT III & Probix probes Ergonomics: modern, hi-tech environment for oscilloscopes which are simple, compact and practical Optimization of all the tools: communication, storage and operation METRIX® expertise applied to all the modes: bandwidth, sampling, memory, etc. ”
Ask for a quote Receive Documentation Contact the supplier

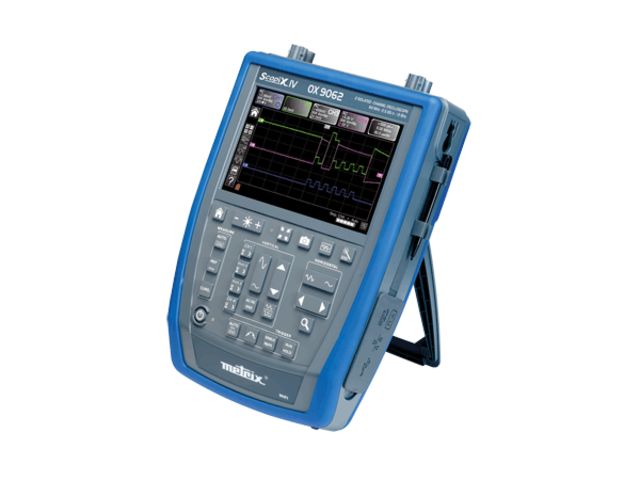

SCOPIX analyser-oscilloscopes (OX9062, 9102, 9104, 9304), 60 to 300 MHz


The new, comprehensive, stand-alone, portable, IP54, METRIX® SCOPIX IV oscilloscopes are equipped with channels which are genuinely isolated from one another and from the earth with 600 V CAT III safety. They offer all the analysis modes: multimeter, analyser, recorder and viewing of the files recorded on the oscilloscope. Designed and developed using the latest cutting-edge technology, their ergonomic format ensures optimum user comfort.

Measurements & analyses
Equipped with unprecedented functions, with bandwidths from 60 MHz to 300 MHz, the SCOPIX IV benefits from genuine high performance thanks to its 12-bit converter with a vertical resolution of 0.025 %. In addition to its advanced trigger functions (pulse width, counting, delay), the SCOPIX IV also proposes 20 automatic measurements per channel associated with the cursors for full analysis. The SCOPIX IV benefits from standard and advanced "MATH" functions for defining a mathematical function and vertical scaling with definition of the real physical unit for each of the channels.
When seeking the source of noise in the logic circuits, effective,accurate diagnosis is possible by applying real-time FFT while viewing the waveform and then performing qualitative analysis of the harmonics and the distortion of the signal and examining the pulse response.
The multi-channel 8,000-count 200 kHz TRMS multimeter measures amplitudes, resistance, continuity, capacitance, frequency and temperatures. When used with the logger, the SCOPIX IV automatically makes time/date-stamped graphical recordings.
Power measurements are available in this mode: single and three-phase power, active, reactive and apparent power, power factor.The multi-channel harmonic analyser displays the first 63 orders for signals whose fundamental frequency is between 40 and 450 Hz.

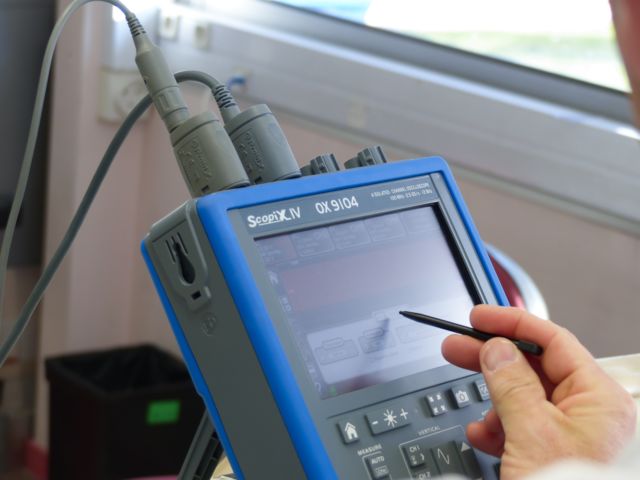

New design with its backlit 7" WVGA TFT colour touch screen with black background which makes it particularly easy to read, menus available in more than 13 languages and the design of the keypad and casing, the SCOPIX IV offers optimum user comfort.

Oscilloscope, multimeter, analyser and recorder modes, with the recorded files directly viewable on the oscilloscope. Bandwidth from 60 MHz to 300 MHz 2 or 4 totally-isolated channels 30 direct command keys on the front panel Sampling rate: 2.5 GS/s in one-shot mode and 100 GS/s max in ETS zoom mode Quick battery charging in just 2 hours; battery life up to 8 hours Communication: Ethernet/WiFi/USB/μSD. High-capacity μSD storage; above 32 GB: SD, SDHC, SDXC ScopeNet ANDROID applications is available from Google store. Delivered complete in a bag with its measurement accessories
Download the complete technical features
