Screw connection system RK | SL

Terminal block

Vote

Ask for a quote

Presentation

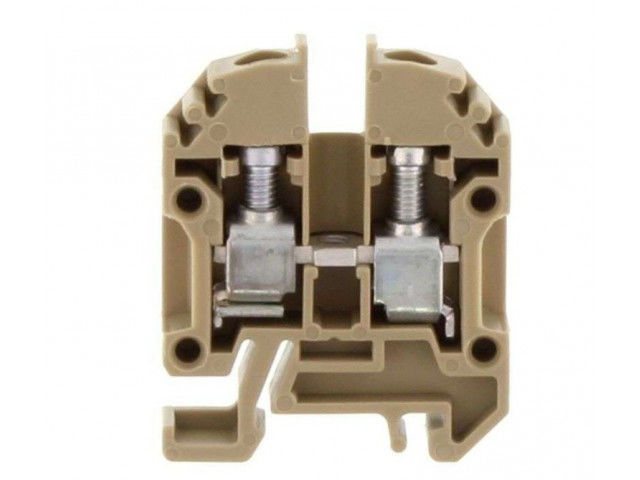

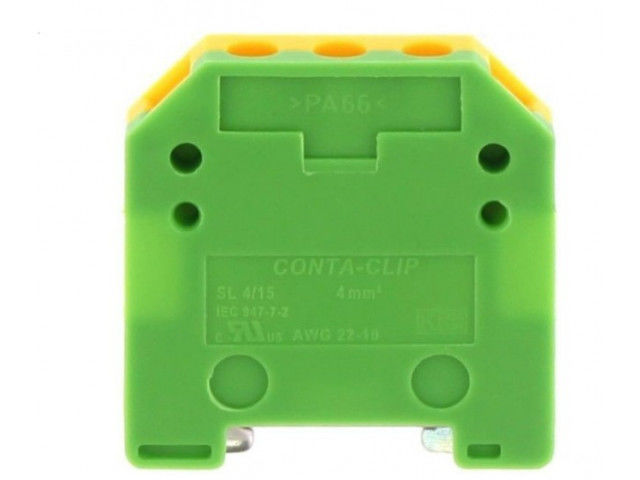

Screw connection system RK | SL CONTA-CLIP offers an innovative line of feed-through and protective-earth terminals featuring the proven screw-connection system for the smallest cross-sections ranging from 0.08 mm² to 240 mm². This also includes disconnect terminals, fused terminals, actuator terminals, sensor terminals, motor-connection terminals and direct-mounting terminals. This system can be used for a large variety of applications with only a minimal number of accessory parts. The screw-connection mechanism is easy to operate and can be used to establish a quick, safe connection using solid and finely stranded wires with or without wire-end ferrules. The protective-earth terminals feature a PE foot contact that is snapped on, ensuring mechanical and electrical safety. You can take advantage of this system to implement all of your switching requirements with a minimal amount of accessories. It ensures an electromechanical connection that is both permanent and high-quality.

Technical features

Article description: Screw connection system RK | SL Material: PA6.6 UL 94 flamm class: V2 self-extinguishing Creepage resistance: CTI 600 Operating temperature: -40°C to +105°C Smallest cross-sections: 0,08 mm² to 240 mm² Length (mm): from 27 bis 93 mm Width (mm): from 5 bis 36 mm Height TS 35/7,5 (mm): from 43,50 to 126,30 mm Height TS 32 (mm): from 43,50 to 132 mm

Download the complete technical features
