Semi-automatic band saw : SH-320130 COSEN EMEA

Semi-automatic band saw : SH-320130

Semi-automatic band saw

Vote

Ask for a quote Receive Documentation Contact the supplier

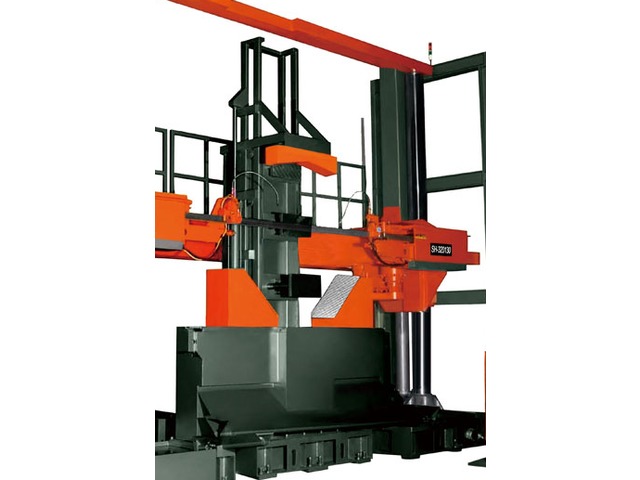

 Semi-Automatic Horizontal Greating-Cutting Band Saw

．This machine is suitable for cutting large pipes, tubing, rings, or heat exchangers with round capacity of 3200 mm, 3200 x 3200 mm square, and throat capacity of 1300 mm. Rigid design featuring oversized dual columns with extra structural support ensures smooth movement throughout the cutting cycle.

．20 HP motor coupled with planetary gear reducer efficiently transfers power and speed to the blade and every cutting point. Meanwhile, precision hydraulic valve utilizing 60-digit display allows easy and precise control over feed rate, hence achieving maximum cutting performance.

Capacity Height : 3200 mm (126") Capacity Width : 3200 mm (126") Capacity Throat : 1300 mm (51") Blade Speed : 20-100 m/min (66-330 fpm) Blade Size (LxWxT) : 13950x80x1.6 (549"x3.15"x0.06") Blade Motor : 20HP (15kW) Hydraulic Motor : 5HP (3.75kW) Coolant Motor : 1/2HP (0.375kW) Automatic Indexing Length : 403 mm (15.9), Max. 99999 mm Gross Weight : 27000 kgs (59400 lbs)
