Semi-Automatic Hydraulic Swivel Head Mitering : SH-500M COSEN EMEA

Semi-Automatic Hydraulic Swivel Head Mitering : SH-500M

Semi-automatic band saw

Vote

Ask for a quote Receive Documentation Contact the supplier

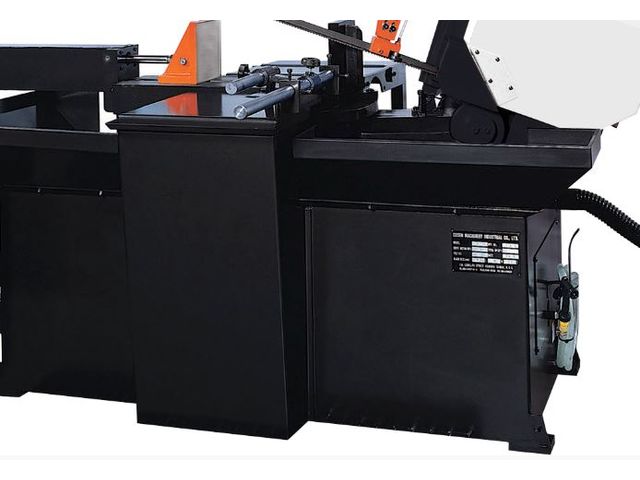

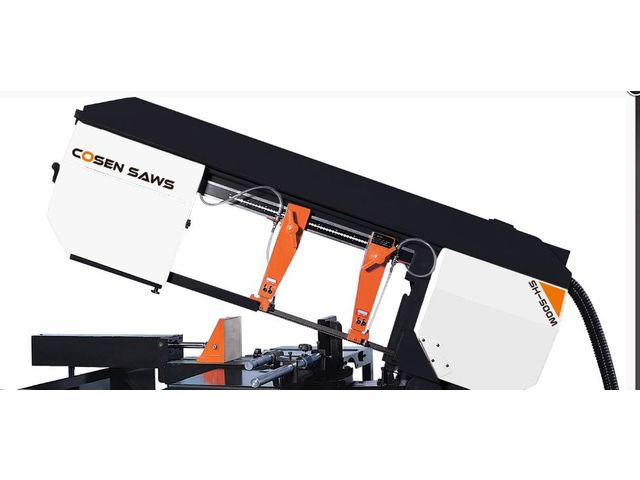

SH / MH-500M, this large capacity and compact sized machine needs relatively small space when compared to machines with the same capacity 330mm(13”). The SH-500M features hydraulic lifting of the saw frame and full stroke hydraulic vise.

These features enable semi-automatic operation to securely hold the work piece, cut, and return the saw frame to a preset work height. Large, heavy-duty trunion and swivel ‘n’ lock mechanism allows for up to 60 degrees of mitering capability. Both models are an excellent choice for diverse job shop needs.

Blade Speed : 23,36,51,76 M/min (75,117,166,247 fpm) Blade Size (LxWxT) : 4150 x 27 x 0.9 mm (163 Blade Motor : 3 HP (2.25 kW) Hydraulic Motor : 1/2 HP (0.375 kW) Coolant Motor : 1/8 HP (0.09 kW) Workbed Height : 820 mm (32.3 Gross Weight : 990 kgs (2079 lbs) Floor Space (LxWxH) : 1870 x 2715 x 2085 (74
