Semi-automatic wrapper - SPK 4603

Semi-automatic bundling machine with welding bar

Vote

Ask for a quote

Presentation

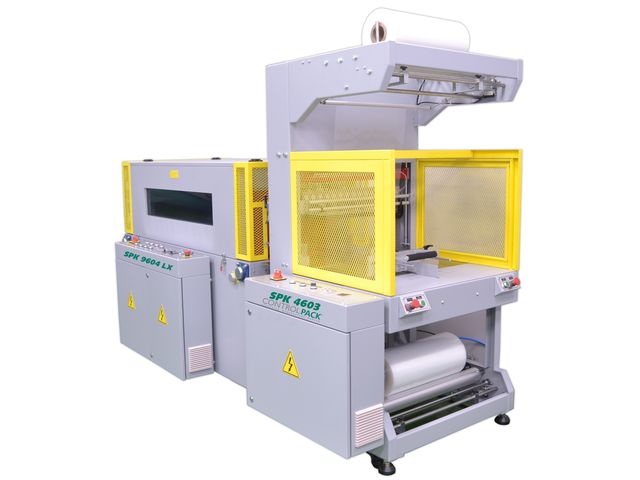

The semi-automatic wrapping machine SPK 4603 is used for the heat-sealing of objects.

The SPK 4603 has a pneumatic pusher, a welding arc, an intermediate zone, a shrink tunnel and a cooling zone.

This wrapping machine incorporates various functions: continuous control of the temperature inside the oven, continuous variation of conveyor speed by the variator motor, homogeneous distribution of the air flow inside the oven with adjustment of these flows, electronic temperature regulation of the welding jaw, welding time adjustment according to the thickness of the plastic ...

The semi-automatic wrapper SPK 4603 retracts the plastic in order to adapt the object for packaging. This machine is suitable for automatic wrapping with shrink film for products. This process is made according to the maximum and minimum concerted measurements.

Technical features

Length (mm.): 3800 - Width (mm.): 920 - Height (mm.): 1800 Operating height: 850 +/- 50mm Entrance area width: 600 - Entrance area depth: 400 Welding bridge width: 700 - Bridge height: 400 Maximum installed stem: 36 Kw. - optional: 18 kw Average power consumption: 10 - 12 Kw / h Air pressure: 6 bar Supply Voltage: 380 Triassic + Neutral - 50/60 Hz - 36 A EC standards : Directive 2006/42 / EC, 2004/108 EC

Opinion on the product

Drop your rating on Semi-automatic wrapper - SPK 4603

Your answer to the rating from -

INTERNET USERS ALSO CONSULTED ON THE CATEGORY SEMI-AUTOMATIC BUNDLING MACHINE WITH WELDING BAR

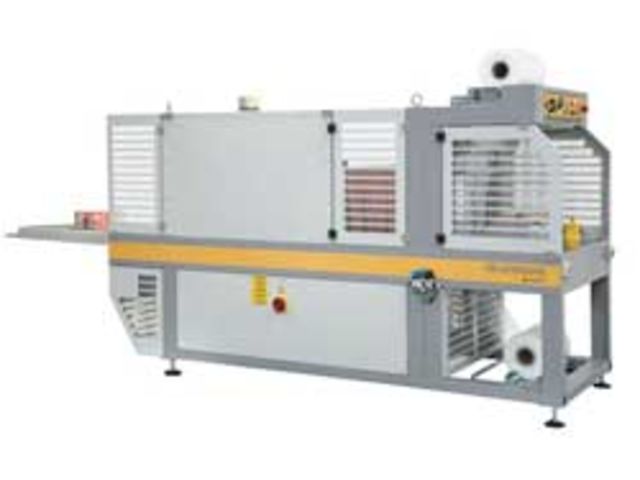

Semi-automatic single-block sleeve wrapper: F700

Ask for a quote

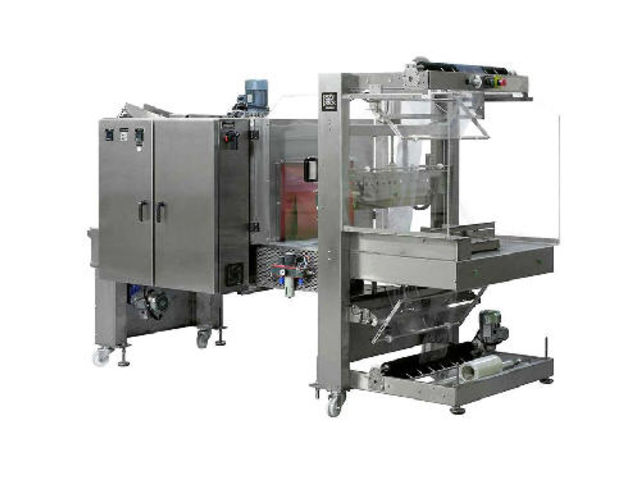

Semi-Automatic SHRINK WRAPPING MACHINE (with sealing bar) : POLY S
