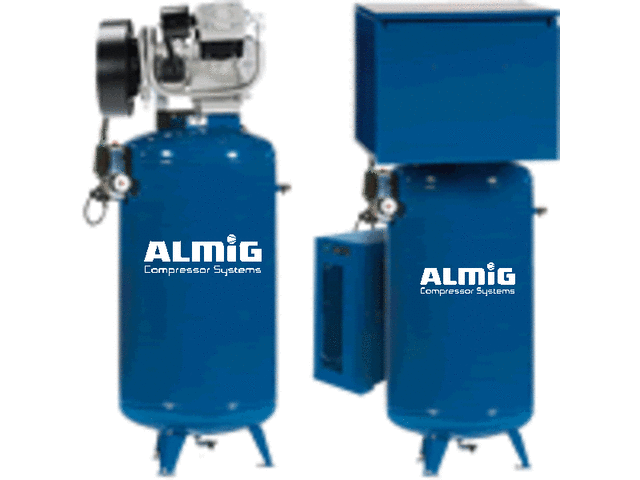

Series A piston compressor - directly driven compressors with individual modular system ALMiG Kompressoren GmbH

Series A piston compressor - directly driven compressors with individual modular system

Piston compressors

Vote

Ask for a quote Receive Documentation Contact the supplier

Supremely tough yet economical describes the air-cooled single- or two-stage compressors of the A series with direct drive. In terms of quality, operating reliability and service life, they set the standard for industrial facilities and guarantee maximum overall reliability and cost-effectiveness.

The technical features:

  • Cylinders of high-quality grey cast iron with deep fins
  • Cast aluminium cylinder heads
  • High-performance cast-iron axial fan
  • Needle bearings in both push rod eyes
  • Brand-name pressure switch with operating hours counter as standard (for version on receiver)
  • Large, highly effective intake filter
  • Energy-saving motor (EFF 1) – IP 54 protection, protection class F

The compact design, performance increments and smart modular system allow piston compressors to be used cost-effectively around the clock. They can be individually and reliably adapted to all operating conditions. The compressed air systems are therefore even ideally suited to sensitive areas of application such as medicine/hospitals, foodstuffs and drinking water supplies.

The modular system comprises:

  • Compressor units for installation purposes
  • Units on base frame for free installation
  • Compressed air systems with horizontal or vertical receivers (also with coupled refrigeration dryers)
  • Compressed air systems with or without sound insulation box
  • Compressed air systems as A-tower, freely configurable with up to 3 units of the same type

Performance class: 1.5 – 3.8 kW Direct drive Highly efficient intake filter Single-stage or two-stage Smart modular system
