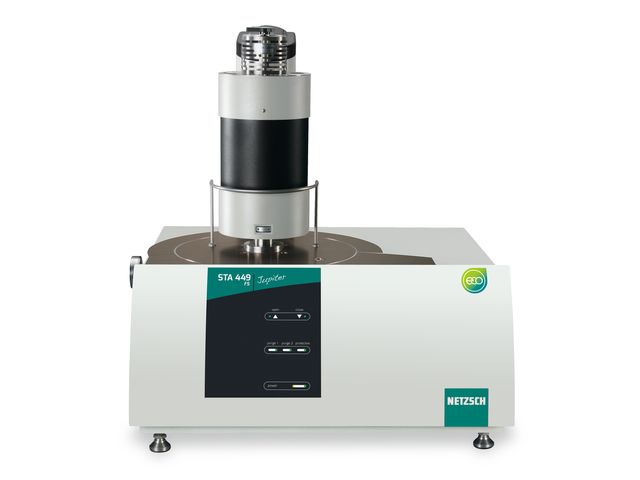

Simultaneous thermogravimetry - differential scanning calorimetry : STA449 F5 JUPITER

Analyzers

Vote

Ask for a quote

Presentation

Fully Equipped

This vacuum-tight STA 449 F5 Jupiter® is hand built specifically for your application. Each instrument comes pre-configured as you need it, with all of the hardware and software features that are required by high-temperature applications in the fields of ceramics, metals, inorganics, building materials, etc.

Best Cost-Performance-Ratio

The STA 449 F5 Jupiter® has high resolution, a high range, low drift balance and sensitive DSC capability that enables it to excel in all typical applications across a broad range of temperatures.

Unique Combination – True TG-DSC and TGA for High-Sample Volumes

True TGA and DSC measurements can be performed with high precision and reproducibility at sample temperatures from ambient to 1600°C. TGA measurements are also possible, even on large or heavy samples.

Top-loading – The Proven Design for Thermobalances

The STA 449 F5 Jupiter® is a top-loading system with a balance design that has been preferred for years in laboratories. The reasons are simple: These systems combine ideal performance with easy handling.

Technical features

Temperature range : RT to 1600°C (sample temperature) Temperature resolution : 0.001 K Heating rate : 0.001 to 50 K/min Temperature resolution : 0.001 K Balance resolution : 0.1 μg (over the entire weighing range) Maximum sample load : 35000 mg (incl. crucible), corresponds to TGA measuring range Sample volume : Up to 5 cm3 (for TGA crucibles) Vacuum-tight : 10-2 mbar Balance drift : < 5 μg/hour Enthalpy accuracy : 1% (indium)
