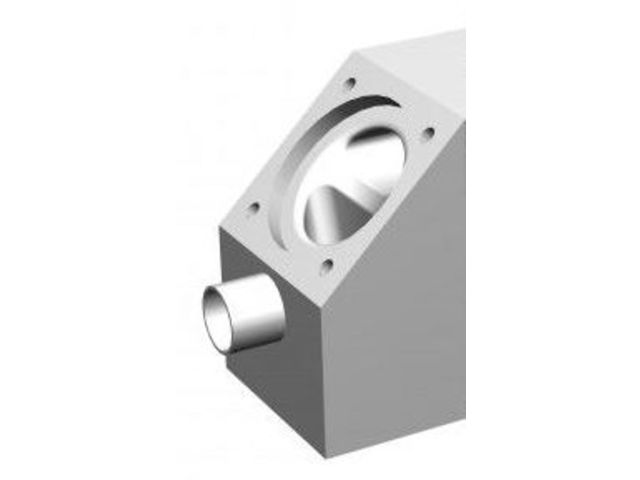

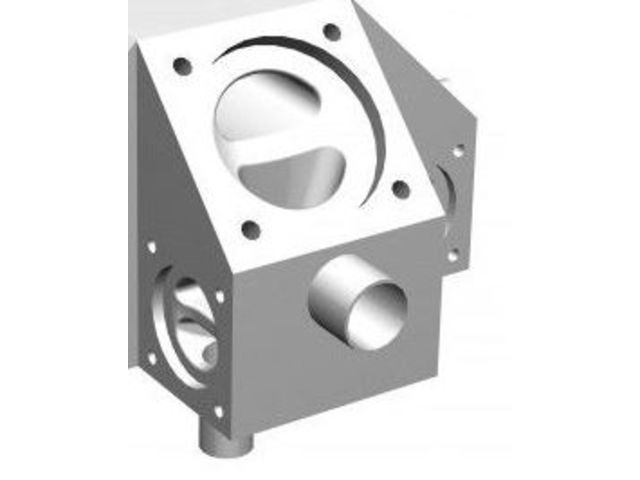

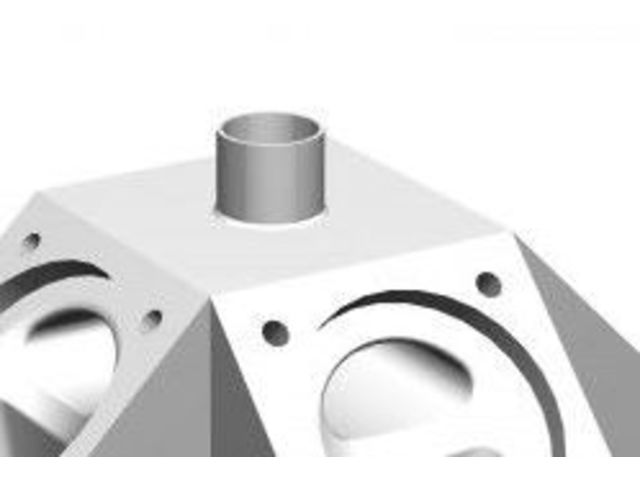

SISTO-CM700 Multi-Port Valve, forged body, PN16 SISTO Armaturen S.A.

SISTO-CM700 Multi-Port Valve, forged body, PN16

Membrane valves

Vote

Ask for a quote Receive Documentation Contact the supplier

SISTO-CM700 ● Multi-port valve ● Unique design with enclosed diaphragm ● Diaphragm with spiral support starting with size MD65 ● With manual or pneumatic actuator ● Shut-off and sealing to atmosphere by diaphragm, therefore two components in contact with the fluid handled only: body and diaphragm ● Butt weld ends or clamped connection ● Body materials: forged stainless steel and other alloy materials ● Diaphragm materials: EPDM, TFM/EPDM bonded, TFM/EPDM 2-piece ● Available nominal diameters: DN6–DN100 ● Operating temperature: – 20°C to + 160°C ● Permissible operating pressure: vacuum up to 16 barg/ optional 20 barg Benefits: ● Suitable for applications up to a line pressure of 16 barg ● Increased operating reliability ● Self-draining ● No dead volume ● No contamination of fluid handled ● Suitable for CIP/SIP ● Maintenance-free ●Compact, space-saving design

Pressure class: PN16; 16 bars Body material: Stainless steel / special alloy forged - 1.4435; 316L; Hastelloy Nominal diameter: DN06 - DN100 Operating temperature: -20°C -160°C Diaphragm: EPDM; TFM/EPDM bonded; TFM/EPDM 2 layers connection: weld ends; clamp; customized Drive: manual; pneumatic Sealing system: enclosed, spiral supported diaphragm Surface: Ra=0,25 - 0,8; Elektropolished; mechanical polishing Approval: FDA; USP; EU1935
Download the complete technical features
