SK-01 - Clamping Force Transducer

Vote

“ - Mechanical adaptation to the specific dimension of the cable - Easy to install and suitable for outdoor use (stainless steel material). ”

Ask for a quote

Presentation

The Clamping Force Transducer SK-01 from MAGTROL is based on strain gauge technology. It is ideal for the control of ropes, brake clamps and similar devices. It measures the clamping force, independent of the clamp, on the longitidunal axis of the transducer.

APPLICATIONS

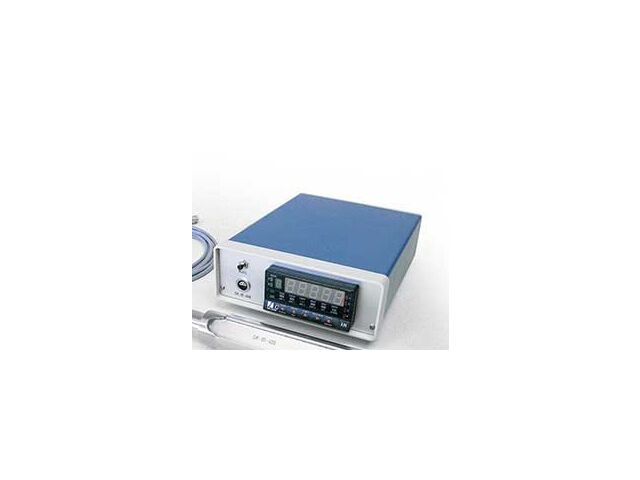

The SK-01 is available in two different ranges. One for ropes with diameter 28...47mm and forces up to 300kN and the second for diameter 48...92 mm with forces up to 400kN. When connected to a SKG-01 Digital Amplifier, the SK-01 is ideally suited for measuring the clamping force on lifts, ski-lifts and similar applications

The capability of this device was tested by Empa (Swiss Federal Laboratories for Materials Testing and Research), see «Prüfbericht Nr. 169166 from 16 July 1997».

Technical features

Nominal Force. 300kN and 400kN (other nominal force available on request) Accuracy Class: 3% Stainless Steel Design Temperature Compensated Amplifier and Display (optional) Protection Class: IP66 Mechanical adaptation for different diameters (rope with diameter 28...95mm)

Download the complete technical features
