Slimline Rings

“ Chemical resistance Very low permeability Reduced costs, as no groove machining is required Easy assembly and installation Distinguish between two identical-looking joints (Poka-Yoke) ”

Ask for a quote

Presentation

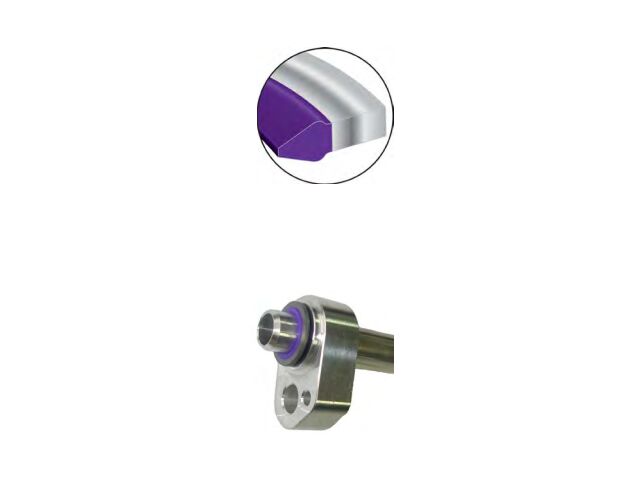

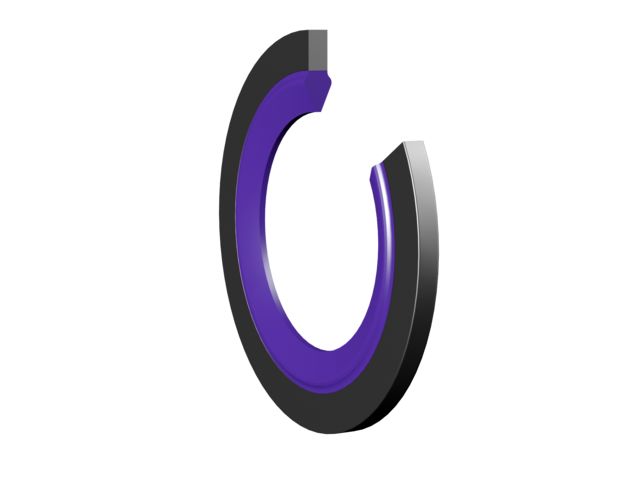

The Slimline ring is an axial sealing solution designed for air conditioning connections, intended to effectively replace the radial clamp O-rings used in standard configurations. It consists of a metal insert containing a trapezoidal elastomer ring, bonded and vulcanized to ensure perfect integrity.

Our exclusive purple EPDM elastomer formulation offers optimized chemical resistance to R1234yf refrigerant and is approved by several major automotive manufacturers, such as BMW, Daimler, and General Motors.

The metal insert is made of carbon steel (cold-rolled and hardened strip), protected by a high-performance Zn-Ni-based anti-corrosion coating.

Available elastomers: EPDM and HNBR

Technical features

Compatible with R134a and R123yf fluids Material certified by leading automotive OEMs Metal insert: carbon steel (cold-rolled and cold-worked strip), aluminum or stainless steel Anti-corrosion treatment: Zn-Ni Axial application Standard dimension list (generic dimensions for air-conditioning fittings)
