Solarimeter: SL 200

Solar energy

Vote

“ - Instantaneous, average, min/max values, hold function - Spectral response from 400 to 1100 nm - Calculation of energetic exposure in Wh/m2 - Solar irrigation measuring range: from 1 W/m2 to 1,300 W/m2 - Energetic exposure measuring range: from 1 Wh/m2 to 500 kWh/m2 - Calibration certificate and data transfer software ”

Ask for a quote

Presentation

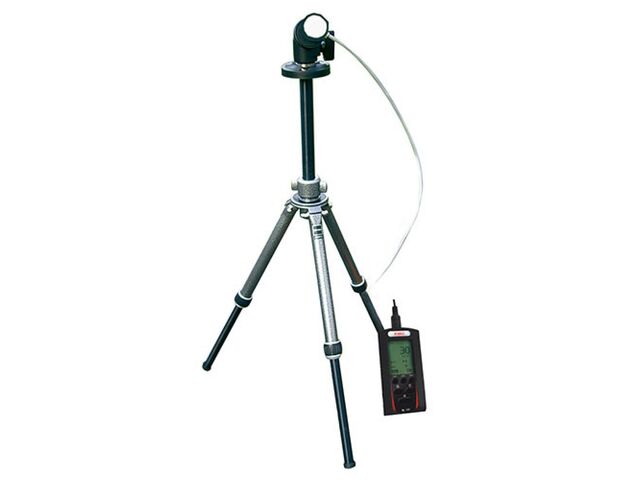

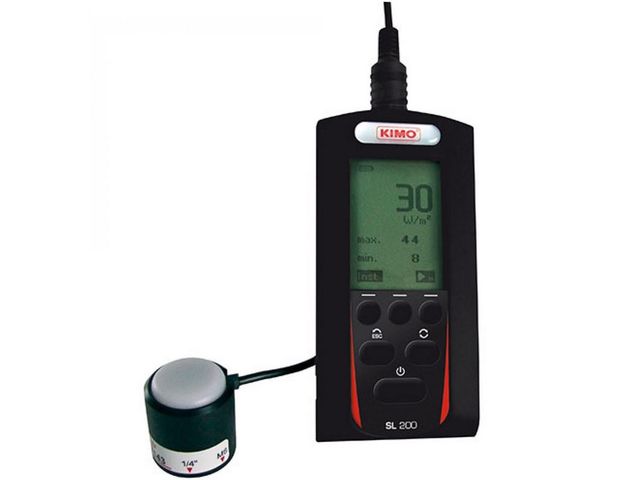

The Kimo SL 200 solarimeter enables the solar power of photovoltaic and thermal installations to be measured and monitored over short and long-term periods.

Easy to use, this measuring device calculates the accumulated energy in Wh/m² during the measurement campaign, stores and records the values.

It is possible to view and interpret the recorded data directly on screen with the graphic function.

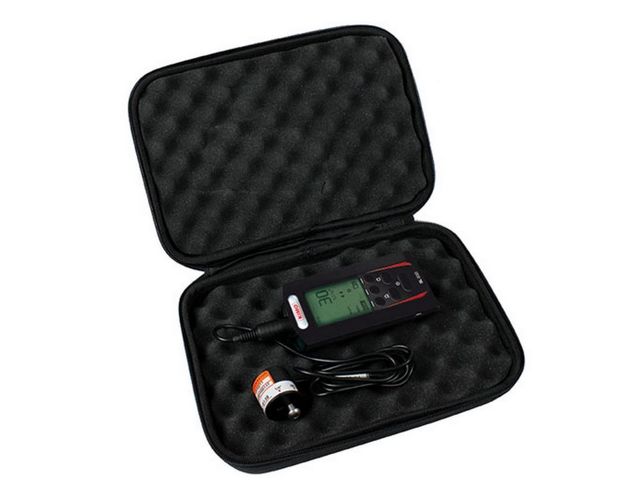

This solarimeter is supplied with a calibration certificate, a carrying case and data processing software.

Easy to use, for immediate information and study with the DL200 graphic software. Estimation of the electrical power produced and optimal orientation for the installation of solar panels and performance monitoring. Choice and determination of the characteristics of thermal or photovoltaic generators.

- Instantaneous, average, min/max values, hold function
- Spectral response from 400 to 1100 nm
- Calculation of energetic exposure in Wh/m2
- Solar irrigation measuring range: from 1 W/m2 to 1,300 W/m2
- Energetic exposure measuring range: from 1 Wh/m2 to 500 kWh/m2
- Calibration certificate and data transfer software

Technical features

Instantaneous, average, min/max values, hold function Calculation of energetic exposure in Wh/m2 Energetic exposure measuring range: from 1 Wh/m2 to 500 kWh/m2 Spectral response from 400 to 1100 nm Solar irrigation measuring range: from 1 W/m2 to 1,300 W/m2 Calibration certificate and data transfer software

Download the complete technical features
