Fiberglass pulling rods are the most efficient way to pull cables, or ropes, into underground conduit.
The fiberglass of our SUNNY® range is of high quality. Its high resistance to pushing and pulling allows it to slip into all ducts.
End caps firmly fixed to the fiberglass have a high resistance to tearing.
The front head has a double function:
- guide head, thanks to its ogive shape
- eyelet, for attaching the cables to be pulled.
Time saving: no end cap to change.
The structure, designed to work on construction sites, have a tubular steel structure, robust and stable.
An integrated brake prevents the fiber from unwinding from the basket by its own tension.
10 lengths to choose from: from 120 meters to 500 meters

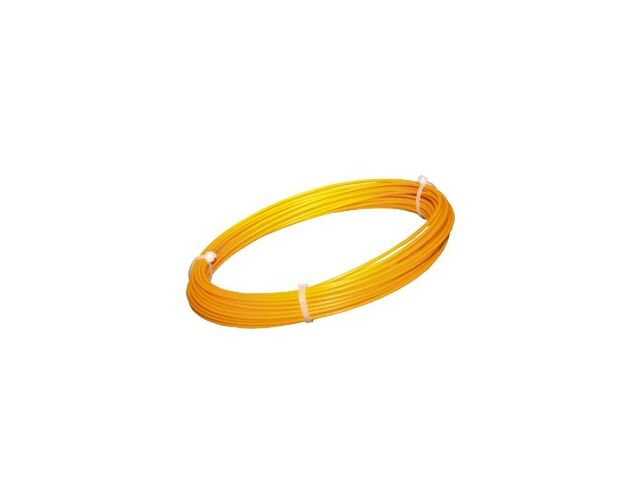

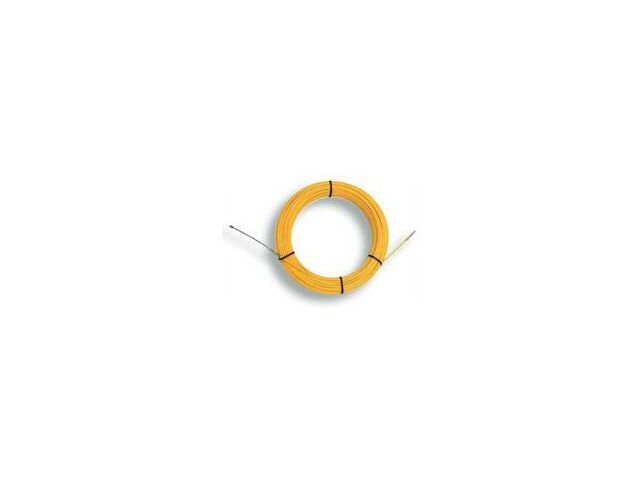

High performance fiberglass diameter 11 mm
Breaking force: 45 kN
High security fixation of the ends: drilling and pin + gluing.
Resistance of end pieces to tearing: 15 kN
Front end: M12 threaded end cap
+ Ø 25 mm aluminum head, dual function (guide head and pulling eyelet)
+ shackle (bolt Ø 10 mm)
Rear end: M12 threaded end cap
High quality frame in galvanized steel, diameter 1000 mm.
Equipped with 2 wheels.
Brake by central ergonomic plastic handle.
Fiber guide system.
For repairing, the fiberglass rod comes with:
- 1 connector
- 2 M12 threaded end caps
- 4 pins
- 1 tube of special glue 20g
Many accessories and options:

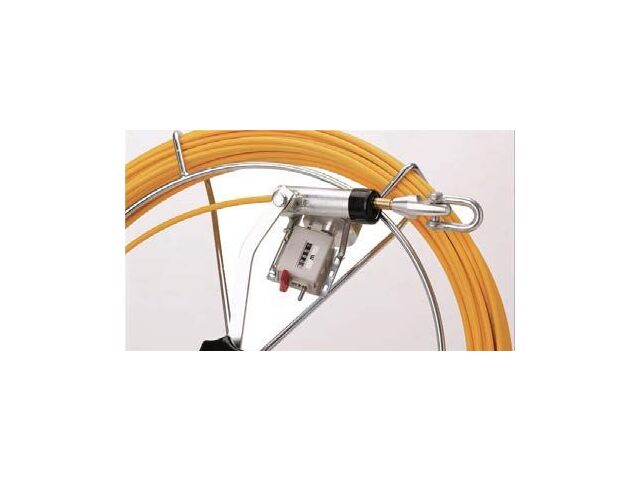

- measuring device
- cable pulling grips, shackles, other guiding heads
- swivels, coupling unit
- cleaning brushes
- spare fiberglass rod, repair kits.
