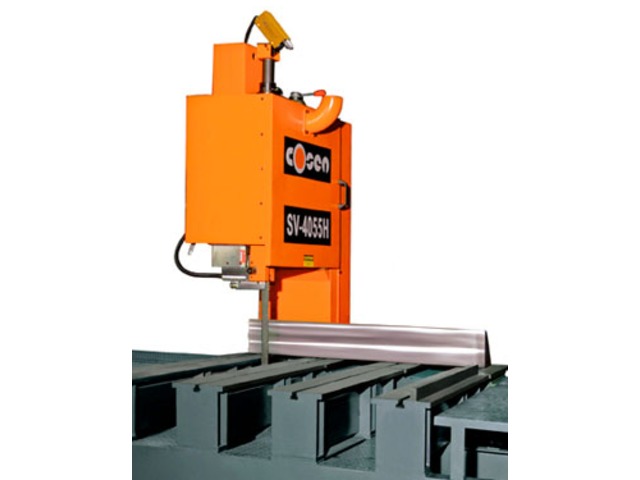

Super Speed Graphite Cutting Head Moving Vertical Band Saw : SV-4055H COSEN EMEA

Super Speed Graphite Cutting Head Moving Vertical Band Saw : SV-4055H

Vertical band saw

Vote

Ask for a quote Receive Documentation Contact the supplier

Super High-Speed Cutting. Applicable material: graphite, silicon, FRP,aluminum alloy and material requiring high blade speed up to 1500-2000.

．Traversing saw head rides over precision linear guides, ensuring smooth pulse-free feeding.

．Sturdily built workbed support workpiece and sustain heavy loads.

．Laser beam light projects cutting path on the material, making it easy to position, align and measure the workpiece.

．Hydraulically actuated guide arm

．T-slot workbed design enabling convenient workpiece clamping

Capacity Height : 400 mm (15.7") Capacity Throat : 550 mm (21.7") Capacity Cutting Length : 1500 mm (59") Blade Speed : 500-1200 m/min Blade Size (LxWxT) : 4670x41x1.3 (183.85"x1.6"x0.05") Blade Motor : 10HP (7.5kW) / 8HP (6kW) Hydraulic Motor : 2HP (1.5kW) Coolant Motor : 1/4HP (0.1875kW) Workbed Height : 1100 mm (43.3") Gross Weight : 3840 kgs (8463 lbs)
