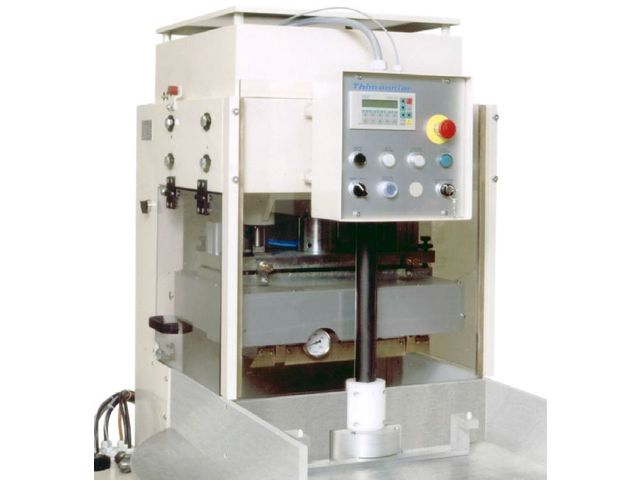

Thermal press for sealing lids on thermoformed hulls Z41 CA PTM THIMONNIER

Thermal press for sealing lids on thermoformed hulls Z41 CA PTM

Packaging machines

Vote

Ask for a quote Receive Documentation Contact the supplier

The Z41 thermal press (3 guide columns) is designed for soldering coverings on thermo-formed hulls.

Its pneumatic technology makes it both simple and comfortable to use, while the rigidity of its structure ensures its durability.
Its alignment is adjusted by a bearing system with micrometric screws for perfect sealing precision.
Controlled completely automatically, for greater flexibility of use its control desk comes equipped with a standard Proface touch screen for intuitive handling and reading of production parameters.

Parameters can be exported via USB port for tracking of control and repeatability:
- sealing times
- pneumatic pressure

The Z41 BS is equipped with backup safety systems:
- Turntable rotation initiated with double button push and mechanical indexing.
- Standard «light curtain» type system.
The tools are replaced by indexing and pneumatic locking, saving handling time.

Upper and lower table dimensions : 320 x 420 mm Max. adjustable sealing pressure = 1200 Kg Pneumatic supply: Effective pressure = 6 bar Consumption = 5 - 10 Nm3/h Power supply: 400 V Tri. + N - 50 Hz Other voltages and frequencies on request - P = 3.5 kVA Plate diameter: 1000 mm Worktop height: 920 mm ± 10 mm Pneumatic lifting during rotation Usable area: 210 mm x 420 mm
Download the complete technical features
