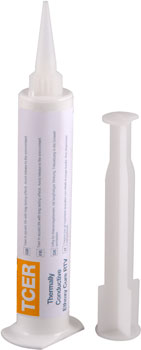

Thermally Conductive Ethoxy RTV : TCER

Thermal seal

Vote

Ask for a quote

Presentation

Electrolube TCER is a single component, 100% solids, low odour RTV which cures upon exposure to atmospheric moisture. The product offers a high degree of thermal conductivity and is suitable for use over a very wide temperature range, making it ideal for a wide variety of uses, particularly in automotive applications. Combining the properties of silicone rubber pads with those of a conventional heat transfer paste, TCER has been designed to fill the gap between the device and heat sink, thus reducing the thermal resistance. It can be applied around components and power resistors to dissipate excess heat to heat sinks, avoiding any potential overheating and subsequent failures.

Technical features

Product code: TCER75S 75ml Single part, low odour RTV Very high thermal conductivity: 2.20 W/m.K Moisture cure - releasing ethanol upon cure Low viscosity for ease of application - use with TCR Gun Applicator Remains flexible and elastic at high temperatures: -50°C to +230°C Low bond strength for ease of rework

Opinion on the product

Drop your rating on Thermally Conductive Ethoxy RTV : TCER

Your answer to the rating from -

OTHER PRODUCTS THERMAL SEAL FROM ELECTROLUBE

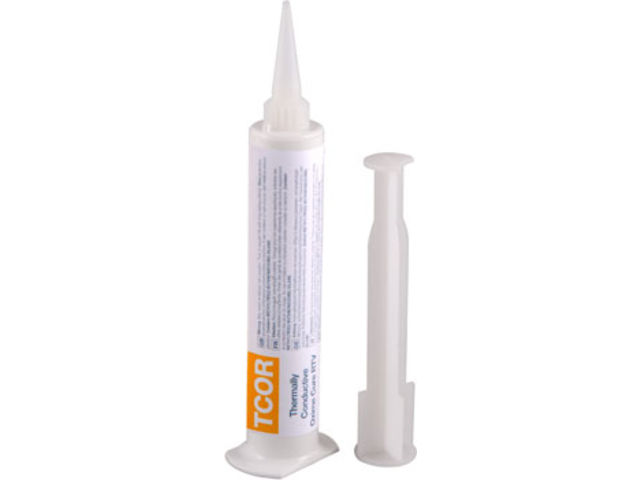

Thermally Conductive Oxime RTV: TCOR
