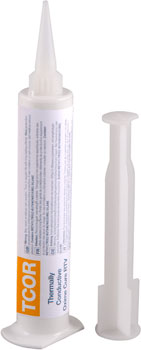

Thermally Conductive Oxime RTV: TCOR

Thermal seal

Vote

Ask for a quote

Presentation

Electrolube TCOR is a single component, 100% solids, low odour RTV which cures upon exposure to atmospheric moisture. The product offers a high degree of thermal conductivity and is suitable for use over a very wide temperature range, making it ideal for a wide variety of uses, particularly in automotive applications. Combining the properties of silicone rubber pads with those of a conventional heat transfer paste, TCOR has been designed to fill the gap between the device and heat sink, thus reducing the thermal resistance. It can be applied around components and power resistors to dissipate excess heat to heat sinks, avoiding any potential overheating and subsequent failures. It can be used as a low bond strength adhesive, sealant or gasketing compound.

Technical features

Product code: TCOR75S 75ml Single part, low odour RTV Very high thermal conductivity: 1.80 W/m. Exceptionally wide operating temperature range: -50°C to +230°C Moisture cure - releasing oxime upon cure Easy to apply - use with TCR Gun Applicator Good bond strength and remains flexible at high temperatures

Opinion on the product

Drop your rating on Thermally Conductive Oxime RTV: TCOR

Your answer to the rating from -

OTHER PRODUCTS THERMAL SEAL FROM ELECTROLUBE

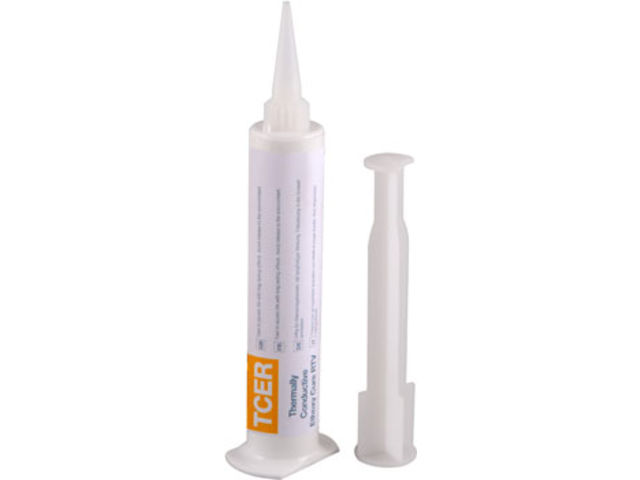

Thermally Conductive Ethoxy RTV : TCER
