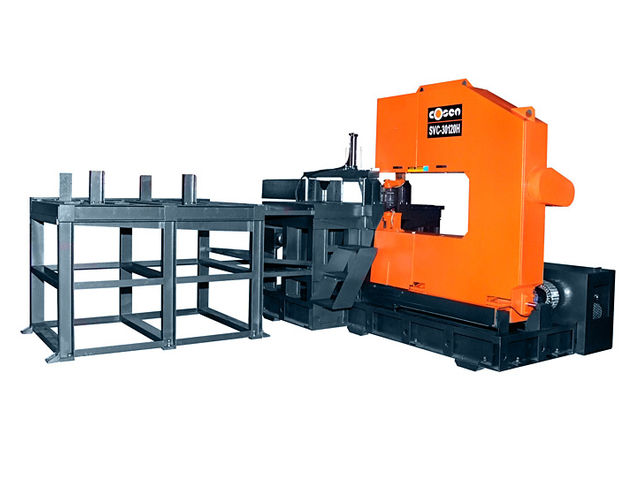

Traversing Head Cross Cutting Plate Saws : SVC-30120H COSEN EMEA

Traversing Head Cross Cutting Plate Saws : SVC-30120H

Automatic band saw

Vote

Ask for a quote Receive Documentation Contact the supplier

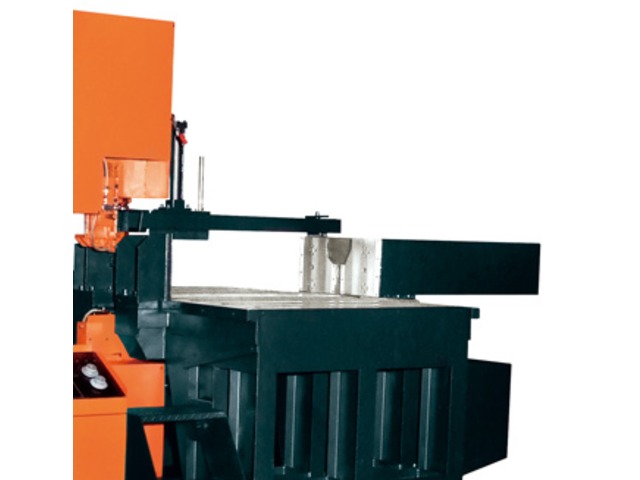

Full stroke hydraulic front & rear vises enable clamping and unclamping from the control station with touch of a button. Both front and rear vises are shuttle vises, allowing for easy loading, positioning and unloading from either side of the roller workbed. 7.5 hp motor ● 41mm (2”) blade ● positive feed saw frame driven by hydraulic cylinder ● Invertercontrolled blade speed ● high precision worm gearbox ● variable feed rate & pressure control valve ● hydraulic powered wire brush system with adjustable speed ● full stroke hydraulic front & rear vises ● roller workbed

Capacity Height : 300 mm (12 Capacity Throat : 1200 mm (48 Blade Speed : 20-80 m/min (65-262 ft/min) Blade Size (LxWxT) : 6650x41x1.3 (261.8 Blade Motor : 7.5HP (5.625kW) Hydraulic Motor : 2HP (1.5kW) Coolant Motor : 1/2HP (0.375kW) Workbed Height : 1300 mm (52 Gross Weight : 8000 kgs (17600 lbs) Floor Space (LxWxH) : 4100x2000x2750 mm (162
