Ultrasonic Cleaning Machine - MOT-3000N TIERRATECH SARL

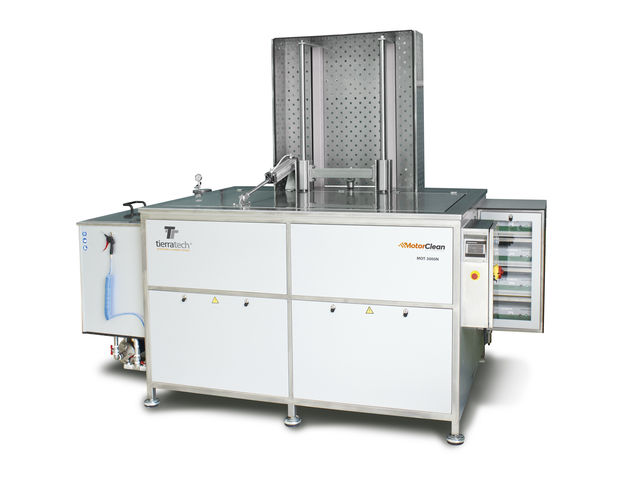

Ultrasonic Cleaning Machine - MOT-3000N

Ultrasonic cleaning equipment

Vote

RklOSVNIRVMgQU5EIEFDQ0VTU09SSUVTICZidWxsOyBBSVNJIDMwNCBzdGFpbmxlc3Mgc3RlZWwgdGFuaywgMi41IG1tIHRoaWNrLiAmYnVsbDsgSy1GbGV4IER1Y3QgTmV0IHRoZXJtYWwgYW5kIGFjb3VzdGljIGluc3VsYXRpb24sIDIwIG1tLiAmYnVsbDsgRXh0ZXJpb3Igc3RlZWwgcGFuZWxsaW5nIHdpdGggYSBzcGVjaWFsLi4u

Contact the supplier Receive Documentation Ask for a quote

OTHER PRODUCTS FROM TIERRATECH SARL

Check out all the products from TIERRATECH SARL

FINISHES AND ACCESSORIES
AISI 304 stainless steel tank, 2.5 mm thick.
K-Flex Duct Net thermal and acoustic insulation, 20 mm.
Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
Pneumatic platform for loading, packing and unloading with capacity for 1500 Kg.

1” water inlet valve and a 2” one for drainage.
Silentblock legs, adjustable in height
Heat-insulated stainless steel end-of-day lid.
Compressed air gun to dry parts. Integrated system to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition.
Sloping bottom to facilitate cleaning. • (Optional): filtering system (stainless steel filter with a polypropylene/polyester bag) for residue and mud.



ULTRASONIC CHARACTERISTICS
Ultrasonic power: 13600 W (27200 W p-p).
4 ultrasound generators with an output power of 3400 W (6800 W p-p) each.
Working frequency: 40 KHz with a frequency Sweep System (Sweep System ± 2 8 submersible emitters of 1700W each.

CONTROL PANEL
• 4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
PLC with a temperature model fitted with 7 outputs and 7 inputs.




Capacity: 3000 litres Internal dimensions: 2050 x 1100 x 1080 mm. Useful measurements: 1880 x 990 x 875 mm. Platform dimensions: 1880 x 990 mm. External dimensions: 3325 x 1635 x 1510 mm. (including auxiliary tank) Weight: 1850 Kg. Ultrasonic power: 13600 W (27200 W p-p). 4 ultrasound generators with an output power of 3400 W (6800 W p-p) each. Working frequency: 40 KHz with a frequency Sweep System (Sweep System ± 2 8 submersible emitters of 1700W each. AISI 304 stainless steel tank, 2.5 mm thick.
Download the complete technical features

Grinding workshops Engine rebuilding work Gearbox repair shops Marine Aeronautic industry
