The Vacuum Chamber VC P305X300 is made of a unique, flexible chamber system based on extruded aluminium profiles. The three meter long profiles are cut to the desired length and equipped with a bolted rear wall and a door.
This system has great benefits:
✓ Flexible length of max. 3 meters
✓ Very fast delivery because only door and back wall must be supplemented
✓ Low-cost
✓ Low-weight
✓ Low desorption of the aluminium, therefore also suitable for high vacuum
✓ Colour of your choice possible by anodising
✓ Highly clean processes possible, e.g. in the semiconductor field
✓ Easy operation
✓ No welding required, parts can be easily attached
✓ Easy attachment to the existing division bars
Vacuum chamber specifications

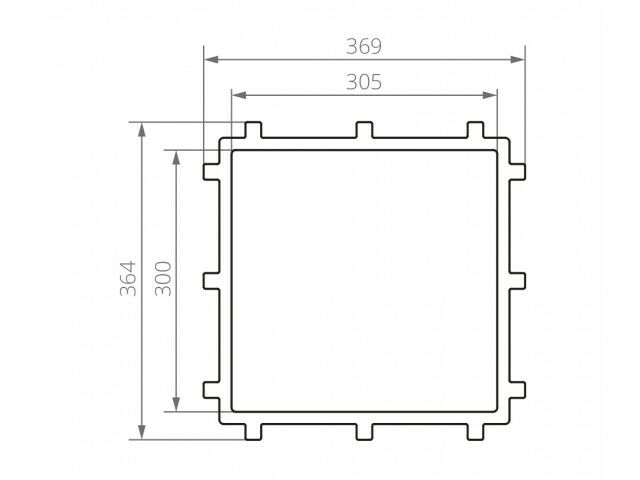

Internal dimensions

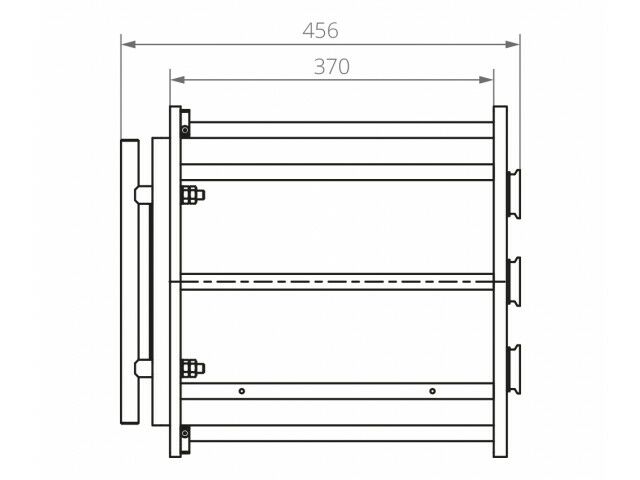

Length: up to 3000 mm (standard: 370 mm, 620 mm)
Width: 305 mm
Height: 300 mm
Front panel (optional): 9 U (1 U = 44.45 mm)
Volume
from approx. 34 to 57 liters

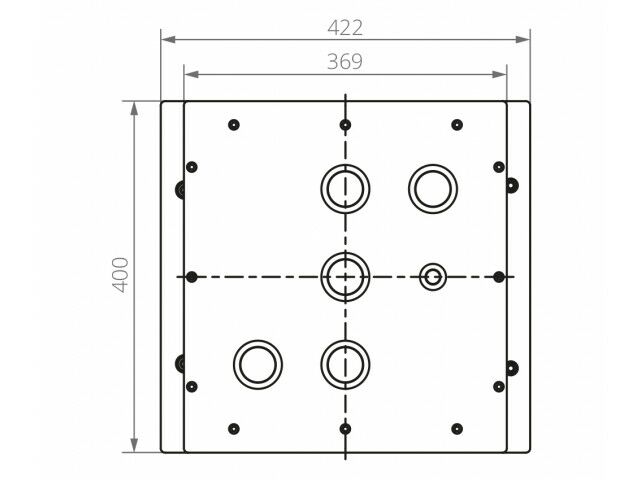

Connections
1 x KF 16
5 x KF 40
Additional flanges possible in any position
Door
Hinged door with sight glass
