Vacuum chamber | VC P400X600 Diener electronic GmbH & Co. KG

Vacuum chamber | VC P400X600

Vacuum systems

Vote

Ask for a quote Receive Documentation Contact the supplier

The Vacuum Chamber VC P400X600 is made of a unique, flexible chamber system based on extruded aluminium profiles. The three meter long profiles are cut to the desired length and equipped with a bolted rear wall and a door.

This system has great benefits:

✓ Flexible length of max. 3 meters
✓ Very fast delivery because only door and back wall must be supplemented
✓ Low-cost
✓ Low-weight
✓ Low desorption of the aluminium, therefore also suitable for high vacuum
✓ Colour of your choice possible by anodising
✓ Excellent thermal conduction
✓ Highly clean processes possible, e.g. in the semiconductor field
✓ Easy operation
✓ No welding required, parts can be easily attached
✓ Easy attachment to the existing division bars

Vacuum chamber specifications

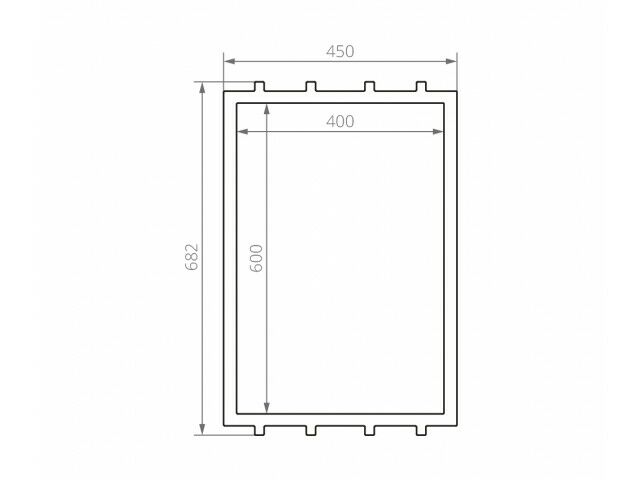

Internal dimensions
Length: up to 3000 mm (standard: 625 mm)
Width: 400 mm
Height: 600 mm
Front panel (optional): 16 U (1 U = 44.45 mm)

Volume
approx. 150 liters

Connections
1 x KF 16
7 x KF 40
Additional flanges possible in any position

Door
Hinged door with sight glass

Diener electronic not only offers pioneering solutions in vacuum chambers, but also:
Low pressure plasma systems for surface treatment
Atmospheric pressure plasma systems for surface treatment
Parylene coating systems
Complete vacuum systems and equipment for a wide range of applications
Test inks for determining surface tension
Plasma indicators to prove successful plasma treatment
Plasma generators

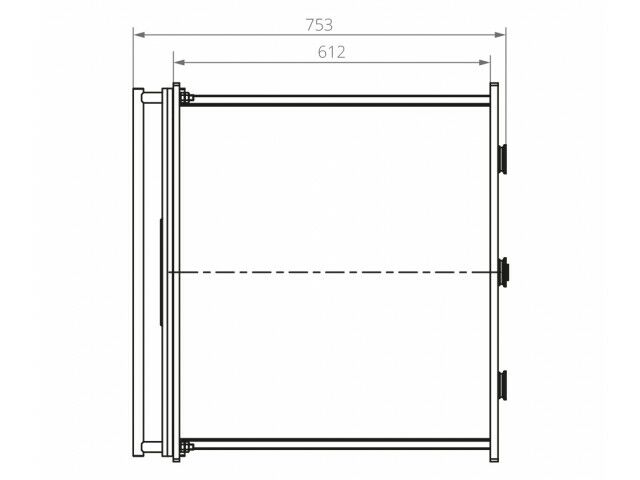

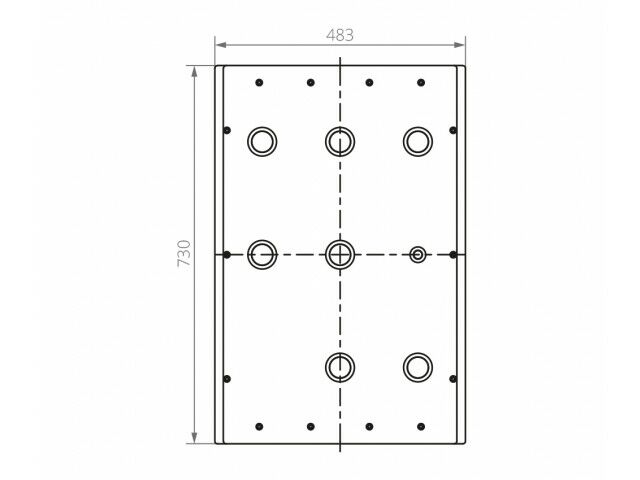

Dimensions (inner): 400 mm x 600 mm x 625 mm (WxHxD) Dimensions (outer): 483 mm x 730 mm x 753/ 741 mm (WxHxD) Front plate: 16 U (1 U = 44.45 mm) Volume: approx. 150 liters Connections: 1 x KF 16, 7 x KF 40 Closure: Hinged door with sight glass
