Vacuum chamber | VC M600² Diener electronic GmbH & Co. KG

Vacuum chamber | VC M600²

Vacuum systems

Vote

Ask for a quote Receive Documentation Contact the supplier

The VC M600² is based on our new modular chamber system. The system consists of individual, fully milled aluminum modules with a depth of 500mm. Thus the length of the chamber can be variably set in 500mm steps.

This system has great benefits:

✓ Flexible length of max. 3 meters
✓ Very fast delivery because only door and back wall must be supplemented
✓ Low-cost
✓ Low-weight
✓ Low desorption of the aluminium, therefore also suitable for high vacuum
✓ Colour of your choice possible by anodising
✓ Highly clean processes possible, e.g. in the semiconductor field
✓ Easy operation
✓ No welding required, parts can be easily attached
✓ Easy attachment to the existing division bars

Vacuum chamber specifications

Internal dimensions
Length: 1000 mm (modular in 500 mm steps)
Width: 600 mm
Height: 600 mm

Volume
approx. 360 liters

Connections
2 x KF 16
6 x KF 40
1 x ISO K 63
1 x ISO K 160

Additional flanges possible in any position

Door
Hinged door with sight glass

Diener electronic not only offers pioneering solutions in vacuum chambers, but also:
Low pressure plasma systems for surface treatment
Atmospheric pressure plasma systems for surface treatment
Parylene coating systems
Complete vacuum systems and equipment for a wide range of applications
Test inks for determining surface tension
Plasma indicators to prove successful plasma treatment
Plasma generators

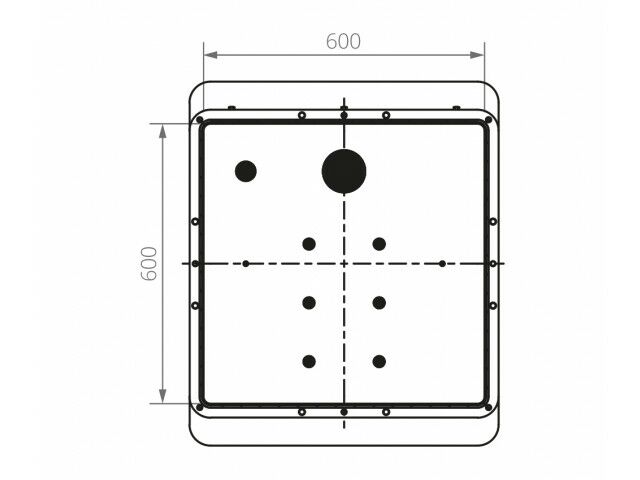

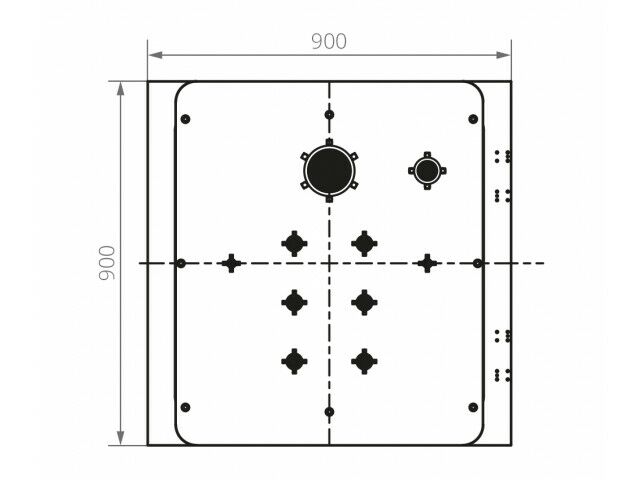

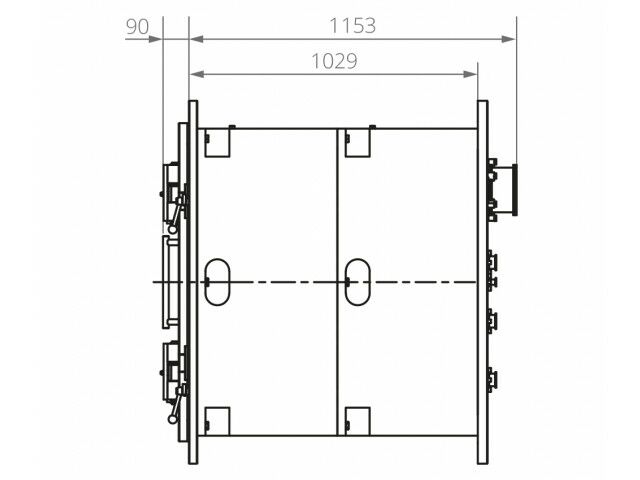

Dimensions (inner): 600 mm x 600 mm x 1000 mm (WxHxD) Dimensions (outer): 900 mm x 900 mm x 1243 mm (WxHxD) Volume: approx. 360 liters Connections: 2 x KF 16 6 x KF 40 1 x ISO K 63 1 x ISO K 160 Closure: Hinged door with sight glass
