Vacuum chamber | VC M800² Diener electronic GmbH & Co. KG

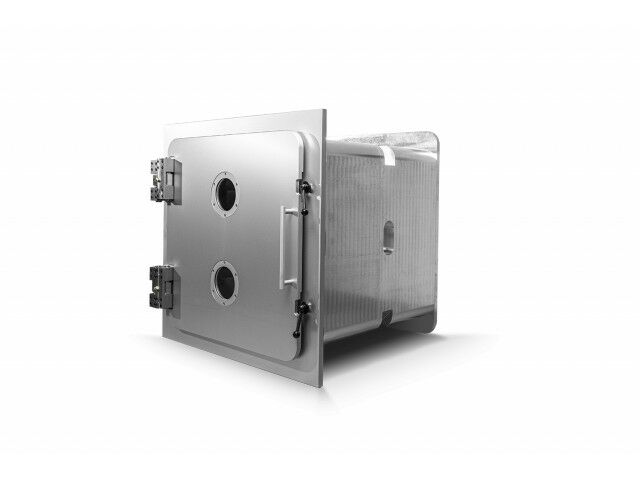

Vacuum chamber | VC M800²

Vacuum systems

Vote

Ask for a quote Receive Documentation Contact the supplier

The VC M800² is based on our new modular chamber system. The system consists of individual, fully milled aluminum modules with a depth of 500mm. Thus the length of the chamber can be variably set in 500mm steps.

This system has great benefits:

✓ Low-cost
✓ Low-weight
✓ Low desorption of the aluminium, therefore also suitable for high vacuum
✓ Colour of your choice possible by anodising
✓ Highly clean processes possible, e.g. in the semiconductor field
✓ Easy operation
✓ No welding required, parts can be easily attached

Vacuum chamber specifications

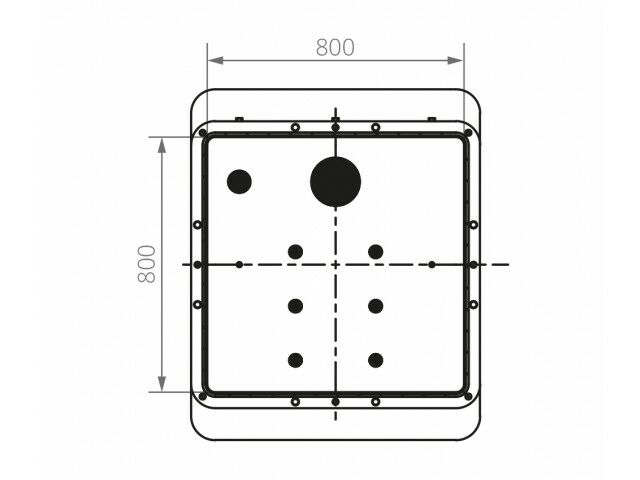

Internal dimensions
Length: 1000 mm (modular in 500 mm steps)
Width: 800 mm
Height: 800 mm

Volume
approx. 640 liters

Connections
2 x KF 16
6 x KF 40
1 x ISO K 63
1 x ISO K 160

Additional flanges possible in any position

Door
Hinged door with sight glass

Diener electronic not only offers pioneering solutions in vacuum chambers, but also:
Low pressure plasma systems for surface treatment
Atmospheric pressure plasma systems for surface treatment
Parylene coating systems
Complete vacuum systems and equipment for a wide range of applications
Test inks for determining surface tension
Plasma indicators to prove successful plasma treatment
Plasma generators

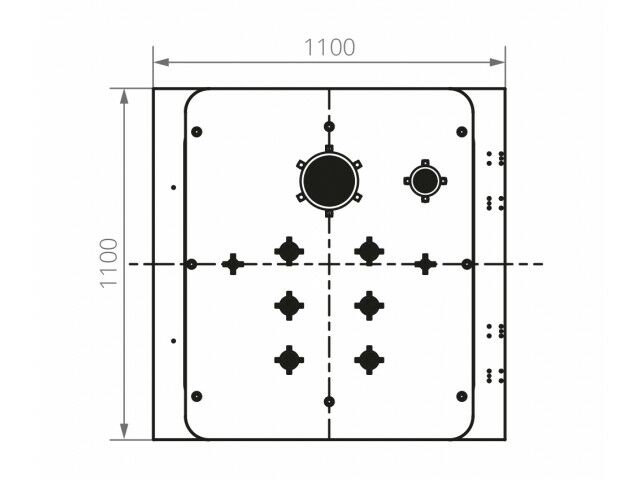

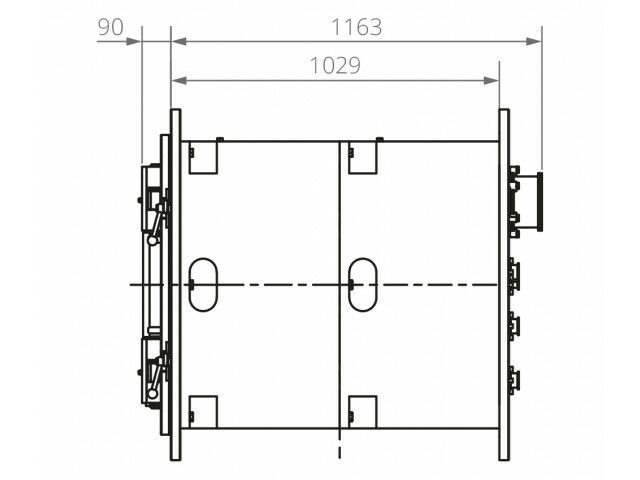

Dimensions (inner): 800 mm x 800 mm x 1000 mm (WxHxD) Dimensions (outer): 1100 mm x 1100 mm x 1253 mm (WxHxD) Volume: approx. 640 liters Connections: 2 x KF 16, 6 x KF 40, 1 x ISO K 63, 1 x ISO K 160 Closure: Hinged door with sight glass
