Vibration sensor NVA/S3 PLd TWK-ELEKTRONIK GmbH

Vibration sensor NVA/S3 PLd

Vibration surveillance

Vote

Ask for a quote Receive Documentation Contact the supplier

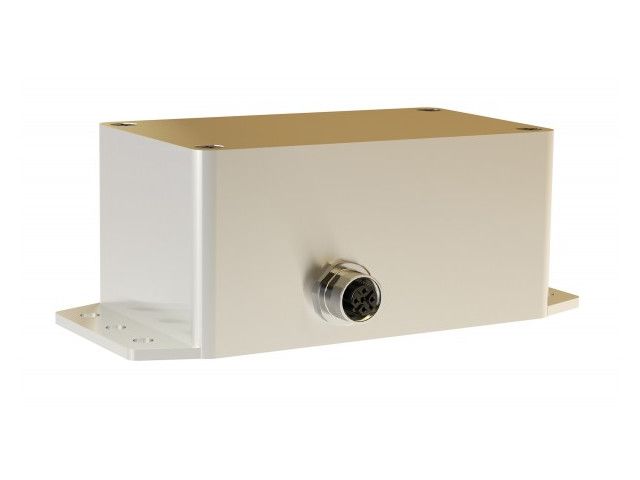

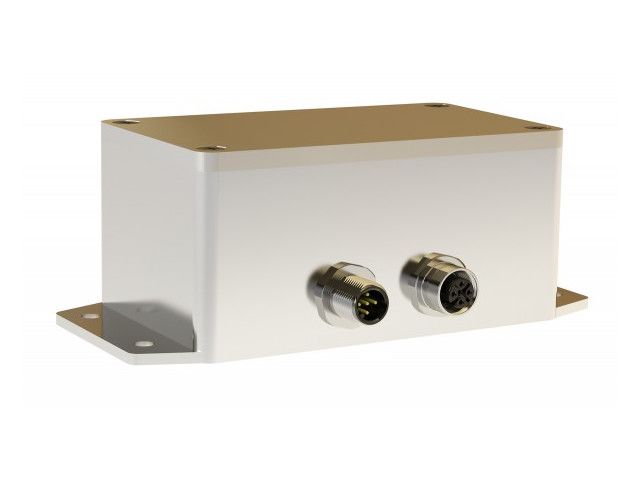

The sensor system is intended as a component for use e.g. in wind power plants to measure and evaluate vibrations in the mast head. Registration of dynamic accelerations by means of MEMS sensors (Micro-Electro-Mechanical System) with subsequent digitisation by a controller. The device consists of an acceleration sensor, a controller unit and three types of output interface. The main feature is two safety switching contacts (potential-free), which can be used e.g. in the safety chain to undertake safety shut-off in the event of excessively high acceleration values. Data output is carried out via the CANopen interface. The standard or the safety profile can be selected. There are additionally two analogue outputs 4 ... 20 mA, which can be optionally assigned to two of the three measurement axes. Thanks to its high resistance to vibration and shock, the sensor is suitable for use in areas with rough environmental conditions. Electrical connection is carried out using two or three connectors.

Interface: Analogue, CANopen, CANopen Safety, Relais Housing material: Aluminium Druckguss ADC 12 Special feature: SIL2/PLd Design: 115mm, 120mm Number of switching outputs: 0, 1, 2 Measuring range: 2 g = approx. 20 m/s² (higher values on request)
Download the complete technical features
