Vibration sensor NVT/S3 PLd TWK-ELEKTRONIK GmbH

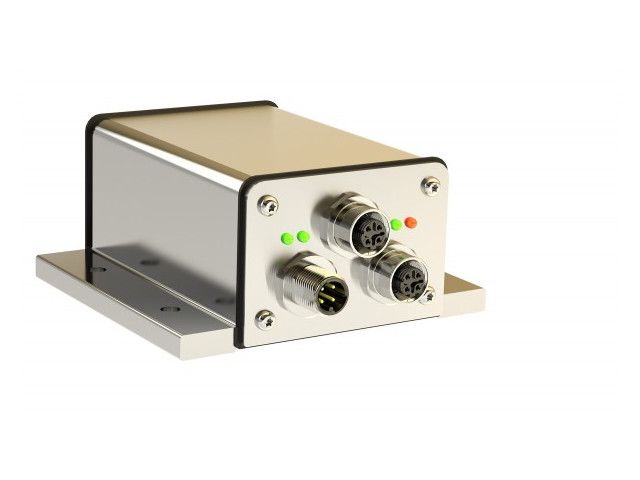

Vibration sensor NVT/S3 PLd

Vibration surveillance

Vote

Ask for a quote Receive Documentation Contact the supplier

The sensor system is intended as a component for use e.g. in wind power plants to measure and evaluate vibrations in the mast head. Registration of dynamic accelerations by means of MEMS sensors (Micro-Electro-Mechanical System) with subsequent digitisation by a controller.The device consists of an acceleration sensor, a controller unit and the output interface PROFIsafe over PROFINET for output of the acceleration values. Thanks to its high resistance to vibration and shock - more than the defined measuring range -, the sensor is suitable for use in areas with rough environmental conditions.Electrical connection is carried out using three connectors.

Interface: PROFIsafe over PROFINET Housing material: Aluminium AIMgSi 1 Measuring ranges available: ±2g Special feature: SIL2/PLd Design: 90mm Measuring range: 2 g = approx. 20 m/s² Profile: PROFIsafe to PROFINET - SIL2 Number of switching outputs: 0
Download the complete technical features
