Vision sensor | V10-RO-A3-R-W-M2-L SENSOPART FRANCE SARL

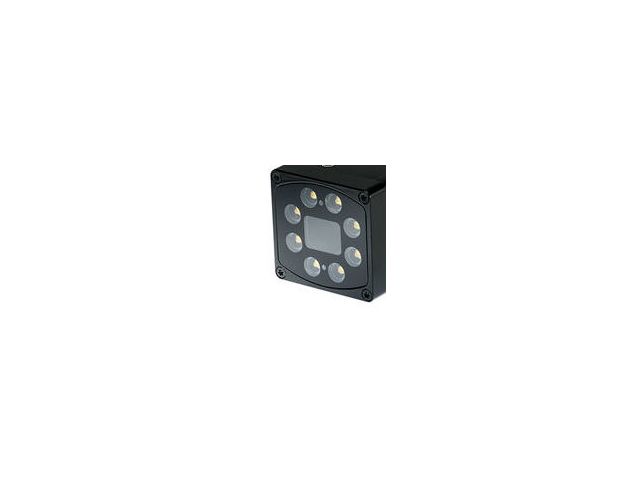

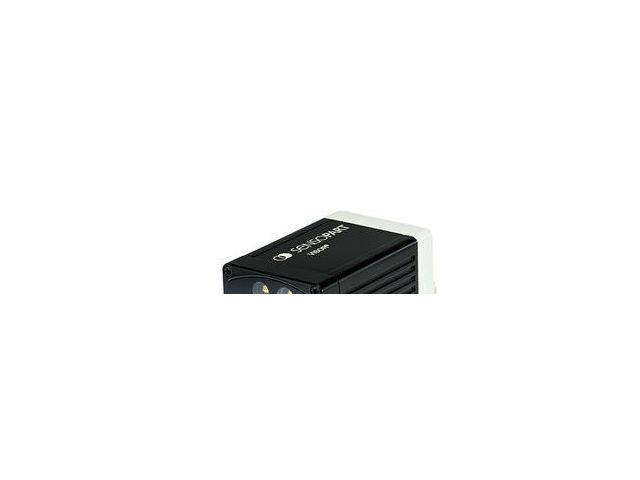

Vision sensor | V10-RO-A3-R-W-M2-L

Vision sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

- Operating voltage : 24 V DC (18 V - 30 V)
- Residual ripple within : EN 61000-4-17: < 5 Vss, test level 3
- Startup time < 14 s
- Current consumption (no I/O) ≤ 300 mA
- Polarity of inputs / outputs : PNP / NPN
- Switching threshold inputs incl encoder High > UB - 1 V, Low < 3 V
- Input resistance > 20 kOhm
- Encoder input : 40 kHz
- Max. output current (per output) 50 mA, Ejector (Pin 12 / RDBU) 100 mA
- Total current of all outputs Max 200 mA
- Number of pixels : 1440 (H) x 1080 (V)
- Field of view size: 1/2.9"
- Pixel size: 3.45 μm x 3.45 μm
