VVEA series – High impact flat spray semi fine fog nozzle IKEUCHI EUROPE B.V.

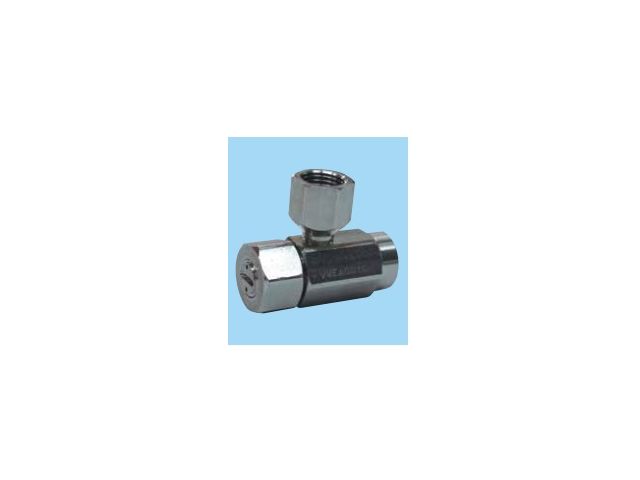

VVEA series – High impact flat spray semi fine fog nozzle

Vote

Ask for a quote Receive Documentation Contact the supplier


Features
  • Flat spray pneumatic nozzle producing semi-fine (and semi-coarse) atomization having a mean droplet diameter of 50μm or more. (*3)
  • High spray impact with thin flat spray pattern and uniform distribution.
  • Liquid pressure type under the liquid pressures of 0.2–0.5 MPa (ca. 2 bar – 5 bar).
  • Large turn-down ratio with stable spray angle.

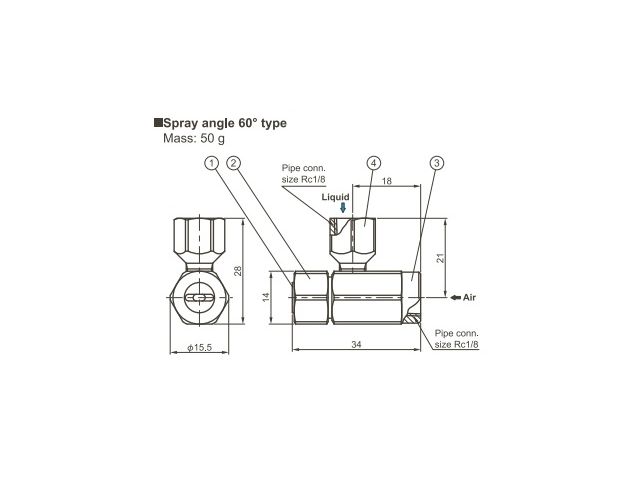

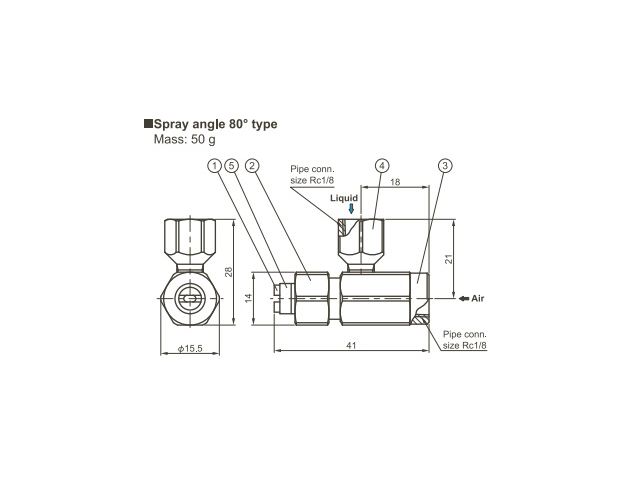

  • Spray angle of 60° or 80°


Applications
  • Cleaning: Printed circuit boards, liquid crystal, liquid crystal display, steel plates

[Steel making industry]
  • Surface finish process: Precision cleaning for steel surface treatment, Roll cleaning

Pipe conn. size Rc 1/8 Spray angle : 60° or 80° Spray capacity : 0.23 - 3.0 ℓ/min Supply air type : Compressed air Liquid feeding system : Liquid pressure Mean droplet diameter : 20 - 400 μm Air consumption : 14 - 128 ℓ/min, Normal Air pressure : 0.2 - 0.5 MPa (ca. 2 - 5 bar) Free passage diameter : 0.8 - 1.6 mm
Download the complete technical features

Electronic Iron and steel making
